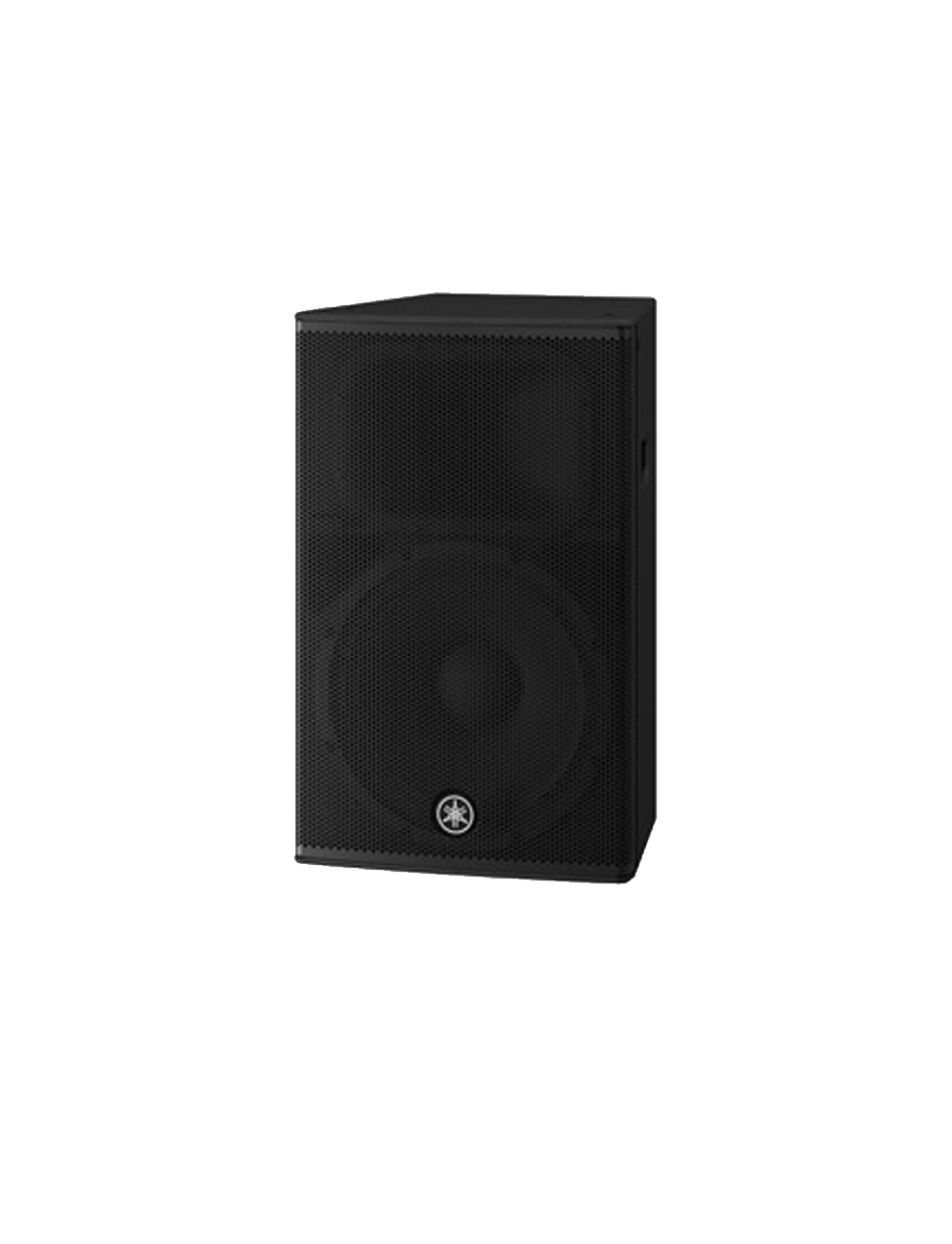

Yamaha DHR15 Powered Speaker

Description Technical Specifications Speaker type: 2-way, bi-amped powered speaker, bass reflex Frequency range (-10dB): 44 Hz – 20 kHz dispersion (H x V): 90° x 60 Crossover: 1.8 kHz: FIR-X Tuning™ (linear-phase FIR filter). Maximum output level (measured peak, IEC noise @ 1m): 131 dB SPL LF driver: 15″ cone, 2.5″ voice coil, ferrite magnet HF driver: 1″ compression diaphragm, 1.4″ voice coil, ferrite magnet Amplifier class: Class-D Power handling: 1000 W (dynamic) / 465 W (continuous) Cooling: fan cooled, 4 speeds Power consumption: 74 W (1/8 power), 18 W (idle) Power supply: 100 V, 100-120 V, 220-240 V, 50/60 Hz A/D D/A converter: 24-bit 48 kHz sampling Processors: HPF: OFF, 100 Hz, 120 Hz, 24 dB/oct; D-CONTOUR: FOH/MAIN, MONITOR, OFF. Inputs: 2x XLR combo jack / 2x RCA (L/R) Outputs: 1x XLR Cabinet material: Plywood Finish: Durable polyurea lacquer, black Handle: 2x side Rod base: 2×35 mm (Bottom) Bracing: 2x Top, 1x Rear, (Fits M10 x 30 – 50 mm eyebolts) Dimensions (W x D x H): 432 x 405 x 692 mm Weight: 24 kg
