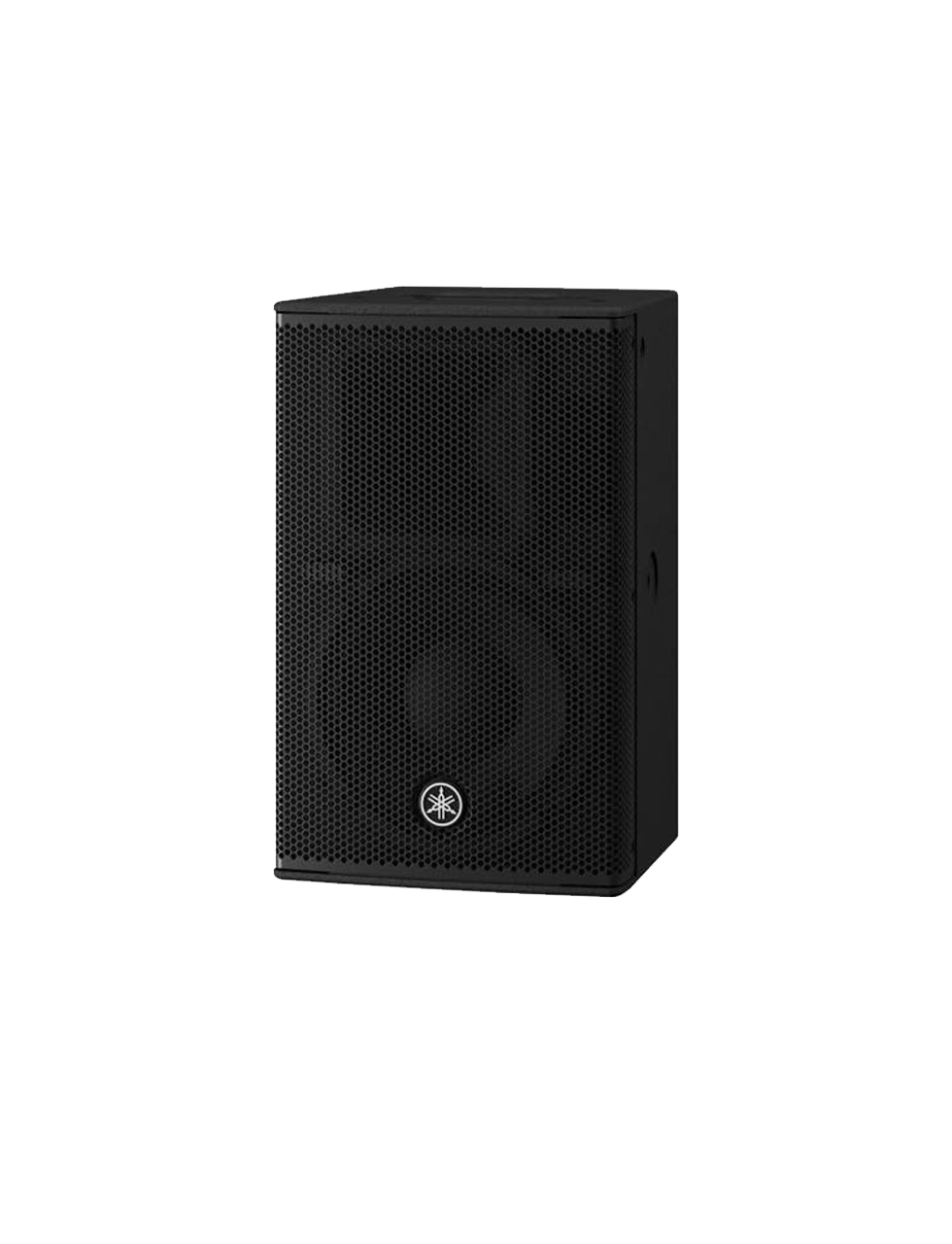

Yamaha DHR12 Powered Speaker

Description General specifications Speaker type 2-way, Bi-amped Powered Speaker, Bass-reflex Frequency range (-10dB)48Hz-20 kHz Coverage area H90xV60 (Rotatable) Crossover 1.8 kHz: FIR-X tuning™ (linear phase FIR filter) Maximum Output Level (Measured peak, IEC noise@1m) 130 dB SPL Components LF Diameter: 12″ cone, Voice Coil: 2.5″ HF Diaphragm: 1.4″, Type: 1″ throat compression driver, Amplifier class Class-D Power rating Dynamic 1000 W (LF: 800 W, HF: 200 W) *1 Continuous 465 W (LF: 400 W, HF: 65 W) Cooling Fan cooling, 4 speeds Power consumption 74 W (1/8power), 18 W (Idle) Power requirements 220V, 50/60 Hz A/D D/A Converters 24 bit 48 kHz Processors OFF, 100 Hz, 120 Hz, 24 dB/Oct.; D-CONTOUR: FOH/MAIN, MONITOR, OFF I/O connectors INPUT1: Combo x1, INPUT2: Combo x 1 RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1 CH2 Mix) Cabinet material Plywood Finish Durable Polyurea Painting, Handle Top x1 Side x2 Pole socket Φ35 mm x2 (Bottom,0° or -7°) Rigging Top x 2, Rear x 1 (Fit for M10 x 30 – 50 mm Eyebolts) Floor Monitor Angle – Dimensions W 359 mm H 578 mm   D 340 mm Net weight 19.2 kg Options U-bracket: UB-DXRDHR12
