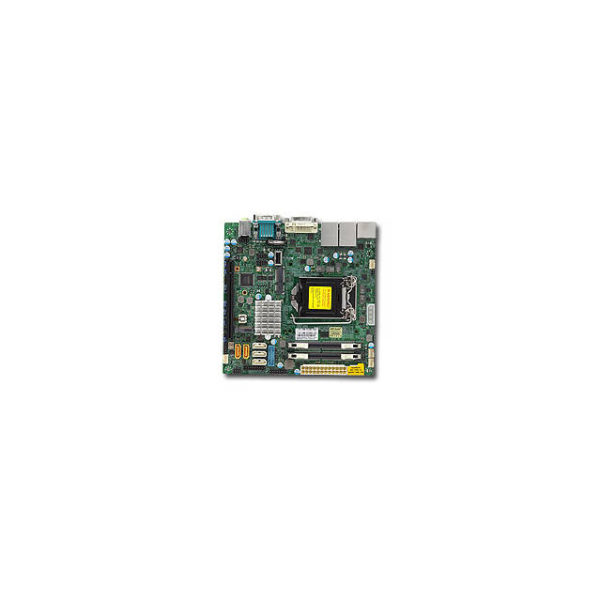

Supermicro X11SSV-Q-B LGA1151- Intel Q170- DDR4- SATA3&USB3.0- M.2- A&2GbE- Mini-ITX Motherboard

Description Specifications Mfr Part Number: X11SSV-Q-B CPU: LGA1151 Supports Intel 6th Core i7/ i5/ i3/ Pentium/ Celeron Processors Support up to 95W TDP Chipset: Intel Q170 Express Memory: 2x 260pin DDR4-2133/ 1866/ 1600MHz SODIMM slots, Non-ECC, Unbuffered, Max Capacity of 32GB Slots: 1x PCI-Express 3.0 x16 Slot; 1x Mini PCI-Express Slot, Support mSATA Storage: SATA: 5x SATA3 Ports, Support RAID 0, 1, 5, 10 M.2: 1x M.2 Port, Support PCI-Express 3.0 x4 2242/ 2280 Audio: Realtek ALC888S High Definition Audio CODEC LAN: Intel PHY i219LM Intel i210AT Gigabit Ethernet Controllers Ports: 6x USB 3.0 Ports (4 rear, 2 via header), 5x USB 2.0 ports (4 via headers, 1 Type A), 1x HDMI Port, 1x Display Port, 1x DVI-I Port, 2x Serial Ports, 2x RJ45 LAN Ports Form Factor: Mini-ITX, 6.7 x 6.7 inch / 17.0 x 17.0 cm RoHS Compliant
