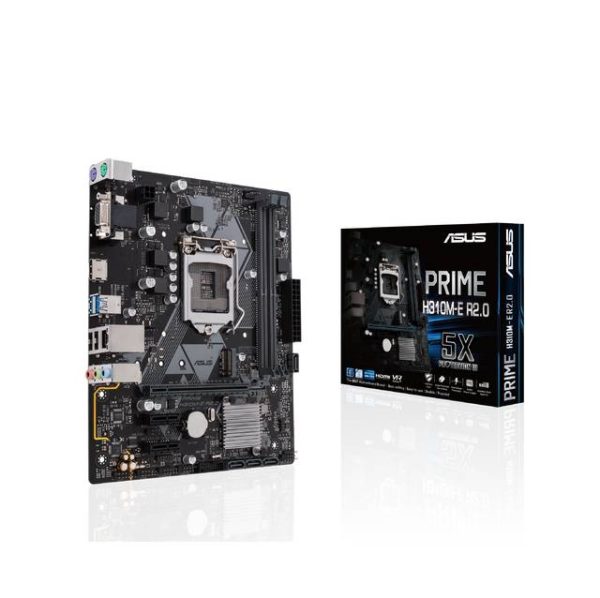

Asus PRIME H310M-E R2.0 LGA1151- Intel H310 Express- DDR4- SATA3&USB3.1- M.2- A&GbE- MicroATX Motherboard

Description Specifications Mfr Part Number: PRIME H310M-E R2.0 CPU: LGA1151 Supports the 8th Generation Intel Core i7/ i5/ i3/ Pentium/ Celeron Processors Supports 14nm CPU Supports Intel Turbo Boost Technology 2.0 Chipset: Intel H310 Express Memory: 2x DDR4-2666/ 2400/ 2133 MHz DIMM Slots, Dual Channel, Non-ECC, Unbuffered, Max Capacity of 32GB Slots: 1x PCI-Express 3.0/2.0 x16 Slot, 2x PCI-Express 2.0 x1 Slots Storage: SATA: 4x SATA3 Ports M.2: 1x M.2 Port (w/ M Key), Supports type 2242/ 2260/ 2280 & SATA mode & x2 PCIE mode Audio: Realtek ALC887 8-Channel High Definition Audio CODEC LAN: Realtek 8111H Gigabit Ethernet Controller Ports: 4x USB 3.1 Gen 1 Ports (2 Type-A rear, 2 at mid-board), 6x USB 2.0/1.1 Ports (2 rear, 4 at mid-board), 1x PS/2 Mouse Port, 1x PS/2 Keyboard Port, 1x VGA Port, 1x HDMI Port, 1x RJ45 LAN Port, Audio I/O Jacks Power Connector: 1x 24pin EATX Power Connector, 1x 4pin EATX 12V Power connector Form Factor: MicroATX, 8.9 x 7.3 inch / 22.6 x 18.5 cm
