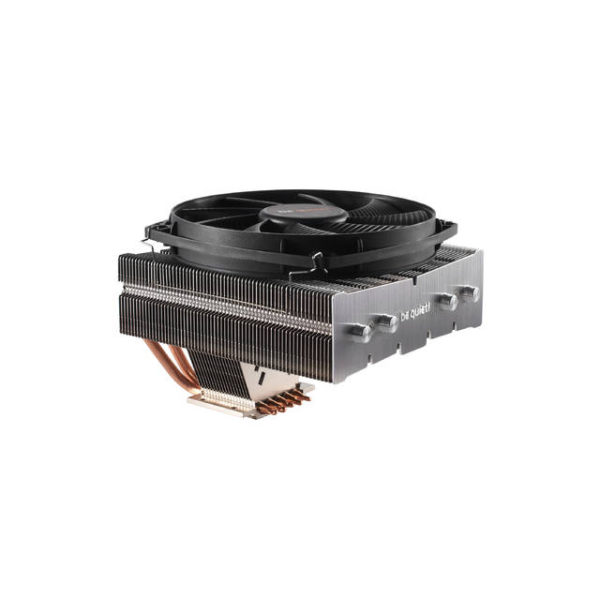

Be quiet! BK003 SHADOW ROCK TF 2- CPU Cooler – 160W TDP Intel: 775- 115x- 1366- 2066- LGA2011 Square ILM AMD: AM2 - AM3 - AM4- FM1- FM2

Description Specifications Mfr Part Number: BK003 Features: Space-saving top-flow construction Very high cooling capacity of 160W TDP  Direct connection of baseplate to cooling fins for fast heat transfer Small, diagonally arranged fins create an airflow that ensures perfect cooling for components near to the socket Silence-optimized 135mm be quiet! fan (max. 24.4db(A)) with durable rifle-bearing technology Five high-performance 6mm heat pipes Compatibility with Intel and AMD sockets Socket Type: Intel: LGA 775/ 115x/ 1366/ 2011(-3) Square ILM/ 2066 AMD: Socket AM2 / AM3 / AM4/ FM1/ FM2 Fan: Model: 1x Silence-Optimized be quiet! Fan Speed: 1400 RPM @ 100% PWM Overall Noise Level: 50% RPM – 11.9 dBA, 75% RPM – 19.3 dBA, 100% RPM – 24.4 dBA Air Flow: 67.8 CFM / 113.8 m3/h Air Pressure: 2.1 mm H2O Rated Voltage: 12 V Input Current: 0.11 A Input Power: 1.32 W Bearing Type: Rifle Motor: 4-pole Fan Motor Connector: 4 Pin PWM Cable Length: 200 mm Life Expectancy: 80,000 hours @ 25°C Dimensions: 135.0 x 135.0 x 22.0 mm Heatsink: Heat Pipes Number / Diameter: 5x ¸6 mm Material: Copper Base / Aluminum Fins Number of Fins: 57 CPU Contact Surface: CNC machined Dimensions (WxLxH): 165.0 x 137.0 x 87.0 mm Thermal Design Power: 160 W Overall Dimensions (WxLxH): 165.0 x 137.0 x 112.0 mm (w/o mounting material) Weight: 0.68 kg
