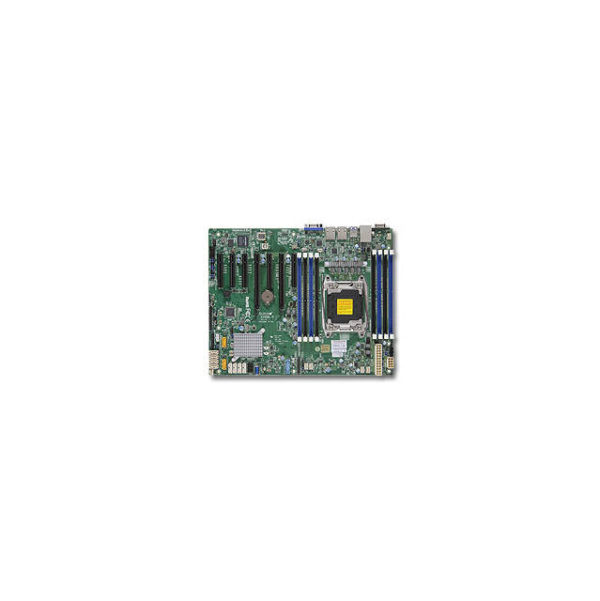

Supermicro X10SRL-F-B LGA2011- Intel C612- DDR4- SATA3&USB3.0- V&2GbE- ATX Server Motherboard

Description Specifications Mfr Part Number: X10SRL-F-B CPU: LGA2011 Supports Intel Xeon E5-2600/1600 v3 Processors Supports up to 18 Cores Supports up to 45MB Cache Supports up to 145W TDP Chipset: Intel C612 Express Memory: 8x 284pin DDR4-2133/ 1866/ 1600/ 1333 DIMM Slots, Supports up to 512GB ECC Load Reduced Memory or up to 256GB ECC/REG Memory Slots: 2x PCI-Express 3.0 x16 Slot (run at x8), 4x PCI-Express 3.0 x8 Slots (two run at x4), 1x PCI-Express 2.0 x8 Slot (runs at x4) SATA: 10x SATA3 Ports, Support RAID 0, 1, 10 Video: Integrated ASPEED AST2400 BMC Graphics LAN: Intel i210 Dual Port Gigabit Ethernet Controller Ports: 4x USB 3.0 Ports (2 rear, 1 via header, 1 Type A), 8x USB 2.0 Ports (2 rear, 6 via headers), 1x VGA Port, 2x Serial Ports (1 rear, 1 via header), 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port Form Factor: ATX, 12.0 x 9.6 inch / 30.5 x 24.4 cm RoHS Compliant
