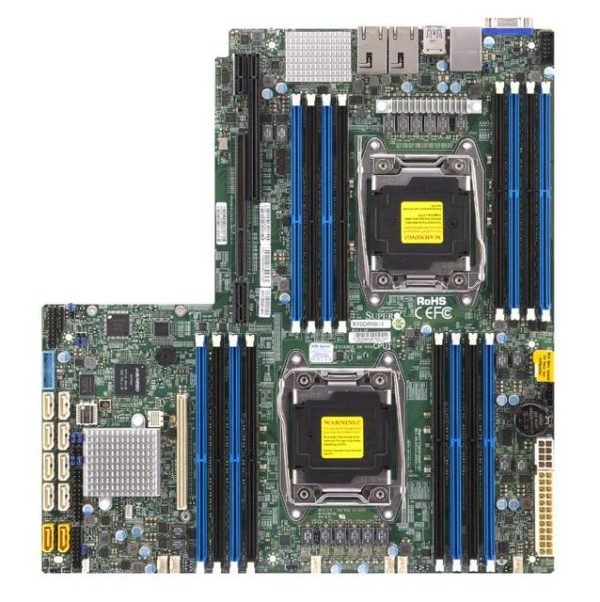

Supermicro X10DRW-IT-B Dual LGA2011- Intel C612- DDR4- SATA3&USB3.0- V&2GbE- Proprietary WIO Server Motherboard

Description Specifications Mfr Part Number: X10DRW-IT-B CPU: Dual LGA2011 Support Intel Xeon E5-2600 v3 Family Processors Support up to 18 Cores Support  up to 45MB Cache QPI up to 9.6 GT/s Support up to 145W TDP Chipset: Intel C612 Express Memory: 16x 288pin DDR4-2133/ 1866/ 1600 DIMM Slots, Supports up to 1TB ECC/Load Reduced Memory or up to 512GB ECC/REG Memory Slots: 1x PCI-Express 3.0 x16 Slot (AOM); Riser card support – 1x PCI-Express 3.0 x32 Slots (Left side), 1x PCI-Express 3.0 x16 Slots (Right side) SATA: 10x SATA3 Ports, Support RAID 0, 1, 5, 10 Video: ASPEED AST2400 BMC Graphics LAN: Intel X540 Dual Port 10-Gigabit Ethernet Controller; 1x Realtek RTL8211E PHY (dedicated IPMI) Ports: 6x USB 3.0 Ports (4 rear, 2 via header), 1x VGA Port, 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port Form Factor: Proprietary WIO, 12.3 x 13.0 inch / 31.2 x 33.0 cm RoHS Compliant
