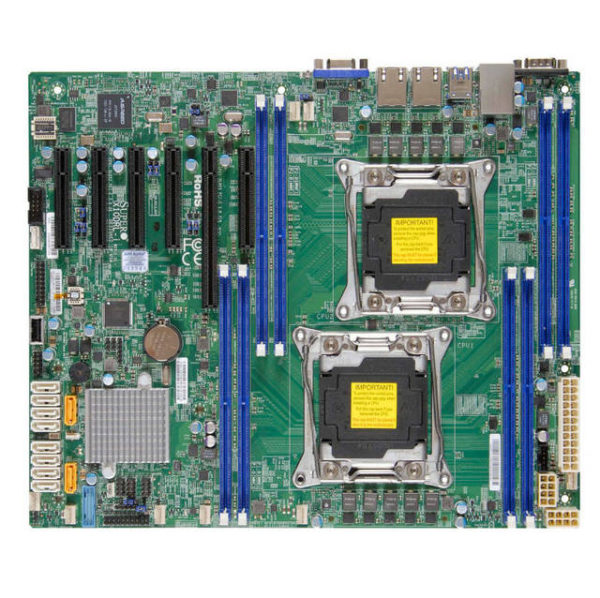

Supermicro X10DRL-I-B Dual LGA2011- Intel C612- DDR4- SATA3&USB3.0- V&2GbE- ATX Server Motherboard

Description Specifications Mfr Part Number: X10DRL-I-B CPU: Dual LGA2011 Support Intel Xeon E5-2600 v3 Family Processors Support up to 18 Cores Support up to 45MB Cache QPI up to 9.6 GT/s Support up to 145W TDP Chipset: Intel C612 Express Memory: 8x 288pin DDR4-2133/ 1866/ 1600 DIMM Slots, Support up to 512GB ECC/Load Reduced Memory or up to 256GB ECC/REG Memory Slots: 1x PCI-Express 3.0 x16 Slot, 4x PCI-Express 3.0 x8 Slots (one runs at x4), 1x PCI-Express 2.0 x8 Slot (runs at x4) SATA: 10x SATA3 Ports, Six Support RAID 0, 1, 5, 10, Two Support SATA DOM Video: Aspeed AST2400 BMC Graphics LAN: Intel i210 Gigabit Ethernet Controller, 1x Realtek RTL8211E PHY (dedicated IPMI) Ports: 4x USB 3.0 Ports (2 rear, 2 via header), 5x USB 2.0 Ports (2 rear, 2 via header, 1 Type A), 1x VGA Port, 3x Serial Ports (1 via header, 2x Fast UART 16550), 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port Form Factor: ATX, 12.00 x 10.00 inch / 30.48 x 25.40 cm RoHS Compliant
