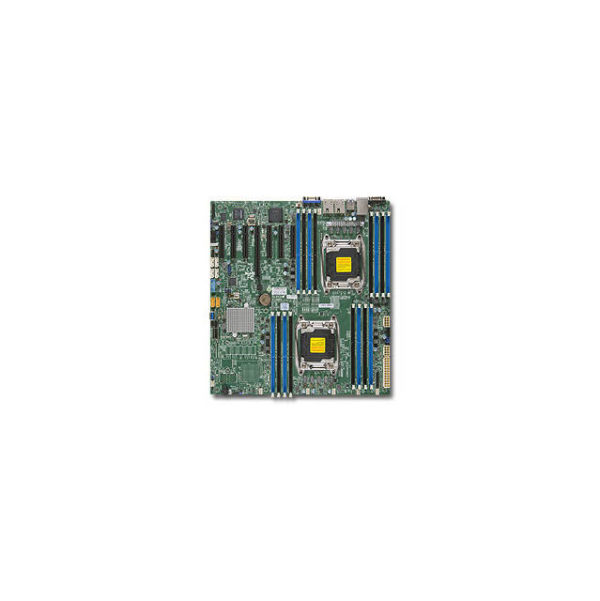

Supermicro X10DRH-IT-O Dual LGA2011- Intel C612- DDR4- SATA3&USB3.0- V&2GbE- EATX Server Motherboard

Description Specifications Mfr Part Number: X10DRH-IT-O CPU: Dual LGA2011 Support Intel Xeon E5-2600 v3 Family Processors Support up to 18 Cores Support up to 45MB Cache QPI up to 9.6 GT/s Support up to 145W TDP Chipset: Intel C612 Express Memory: 16x 288pin DDR4-2133/ 1866/ 1600 DIMM Slots, Support up to 1TB ECC/Load Reduced Memory or up to 512GB ECC/REG Memory Slots: 1x PCI-Express 3.0 x16 Slot, 6x PCI-Express 3.0 x8 Slots SATA: 10x SATA3 Ports, Support RAID 0, 1, 5, 10 Video: Aspeed AST2400 BMC Graphics LAN: Intel X540 Dual Port 10-Gigabit Ethernet Controller, 1x Realtek RTL8211E PHY (dedicated IPMI) Ports: 5x USB 3.0 Ports (2 rear, 2 via header, 1 Type A), 4x USB 2.0 Ports (2 rear, 2 via header), 1x VGA Port, 2x Serial Ports (1 rear, 1 via header), 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port Form Factor: EATX, 12.0 x 13.0 inch / 30.5 x 33.2 cm RoHS Compliant
