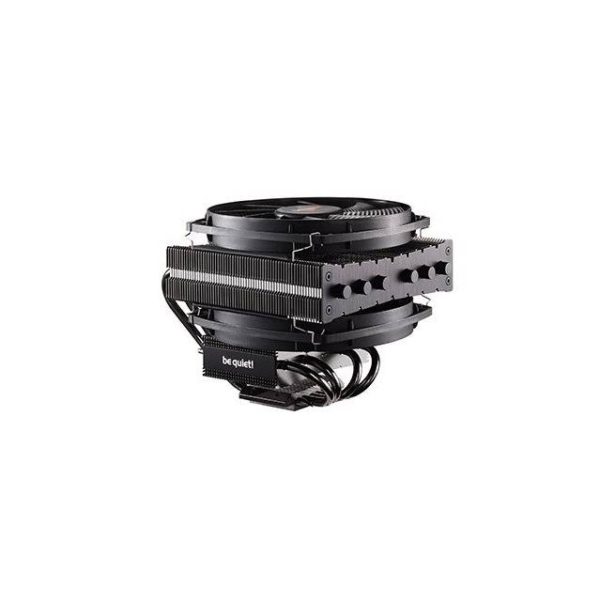

be quiet! BK020 Dark Rock TF – CPU Cooler – 220W TDP Intel: LGA 775 – 115x – 1366 – LGA2011(-3) Square ILM – 2066 AMD: AM2( ) – AM3( ) – FM1 – FM2( )
Description Specifications Mfr Part Number: BK020 Features: Extremely high cooling capacity of 220W TDP supports even overclocked CPUs in compact PCs Two powerful nickel-plated aluminum heat sinks Six high-performance 6mm heat pipes with aluminum caps carry heat to the optimal location on the cooling fins Top-flow layout enables ideal cooling not only for the CPU but also for surrounding components Two SilentWings 135mm PWM fans featuring advanced fluid-dynamic bearing with copper core advanced six-pole motor for smoother operation and less turbulence nine airflow-optimized fan blades dynamically-balanced impeller Noise is a scant 26.7dB(A) even at 100% PWM function Single fan assembly and operation also supported, offering further space savings and even quieter operations Anti-vibration rubber inserts on the heat sink cooling fins further dampen noise Dark nickel-plated finish with brushed aluminum covers Compatibility with all current Intel and AMD sockets Socket Type: Intel: 775 / 115x / 1366 / LGA2011(-3) Square ILM / 2066 AMD: Socket AM2( ) / AM3( ) / FM1 / FM2( ) Fan: Model: 2x SilentWings PWM 135mm Speed: 1400 RPM (Controlled by PWM) Noise Level: 50% RPM – 11.9 dBA, 75% RPM – 19.3 dBA, 100% RPM – 26.7 dBA Air Flow: 67.8 CFM / 113.8 m3/h Air Pressure: 1.85 mm H2O Rated Voltage: 12 V DC Input Current: 0.11 A Input Power: 1.32 W Bearing Type: Fluid Dynamic Bearing Motor: 6-pole Fan Motor Connector: 4 Pin PWM Cable Length: 220 mm Life Expectancy: 300,000 hrs Dimensions: 135.0 x 135.0 x 22.0 mm Heatsink: Heat Pipes Number / Diameter: 6x ¸6 mm Material: Copper Heat Pipes / Aluminum Fins Number of Fins: top – 62, bottom – 64 CPU Contact Surface: CNC machined Surface Treatment: Aluminium / Dark nickel-plated Dimensions : 162.6.0 x 140.0 x 108.8 mm Thermal Design Power: 220 W Dimensions: 140.0 x 162.6 x 130.8 mm (Overall)(w/o mounting material) Weight: 810.0 g Additional information Weight 3.30 lbs Brand be, quiet! MPN BK020 Reviews There are no reviews yet. Only logged in customers who have purchased this product may leave a review.
