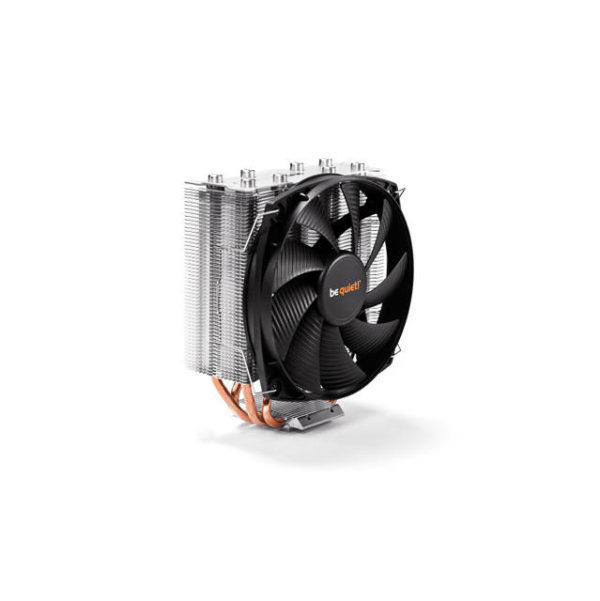

be quiet! BK010 Shadow Rock Slim – CPU Cooler – 160W TDP Intel: 775 – 1150 – 1155 – 1156 – 1366 – 2011 AMD: AM2 ( ) – AM3 ( ) – FM1 – FM2 – 754 – 93

Description Specifications Mfr Part Number: BK010 Features: Impressive compact cooling capacity of 160W TDP Four high-performance 6mm heat pipes carry heat from the nickel-plated copper base plate to the optimal locations on the cooling fins Support of additional 120mm fan for enhanced cooling performance (free fan clips are included in the scope of delivery) A silence-optimized 135mm be quiet! fan supports the best balance between cooling performance and quietness Fan provides smooth operation thanks to nine airflow-optimized fan blades and durable rifle-bearing technology Even at 100% full fan speed, overall noise is a scant 23.7dB(A) Compact design saves space and allows for easy access to RAM banks even within the tight confines afforded by some compact PC enclosures Compatibility with all current Intel and AMD sockets Socket Type: Intel: LGA 775 / 1150 / 1155 / 1156 / 1366 / 2011 AMD: Socket AM2 ( ) / AM3 ( ) / FM1 / FM2 / 754 / 939 / 940 Fan: Model: 1x Silence-optimized Fan Speed: 1400 RPM Noise Level: 50% RPM – 11.5 dBA, 75% RPM – 18.7 dBA, 100% RPM – 23.7 dBA Air Flow: 67.8 CFM / 113.8 m3/h Air Pressure: 2.1 mm H2O Rated Voltage: 12 V Input Current: 0.11 A Input Power: 1.32 W Bearing Type: Rifle Motor: 4-pole Fan Motor Connector: 4 Pin PWM Cable Length: 220 mm Life Expectancy: 80,000 hours @ 25°C Dimensions: 135.0 x 135.0 x 22.0 mm Heatsink: Heat Pipes Number / Diameter: 4x ¸6 mm Material: Copper Base / Aluminum Fins Number of Fins: 52 CPU Contact Surface: CNC machined Dimensions : 52.0 x 130.0 x 161.0 mm Thermal Design Power: 160 W Dimensions (WxLxH): 137.0 x 74.0 x 161.0 mm (Overall)(w/o mounting material) Weight: 0.73 kg
