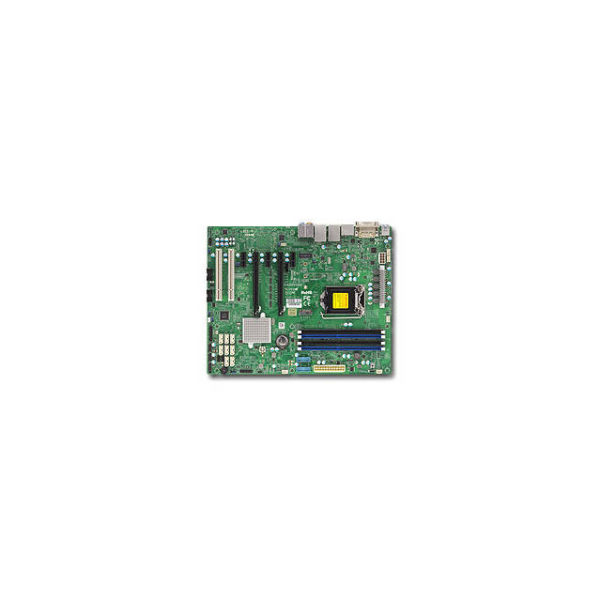

Supermicro X11SAE-B LGA1151- Intel C236- DDR4- SATA3&USB3.1- A&2GbE- ATX Motherboard

Description Specifications Mfr Part Number: X11SAE-B CPU: LGA1151 Supports Intel Xeon E3-1200 v5 Processor Supports 6th Generation Intel Core i7/ i5/ i3/ Pentium/ Celeron Processors Support up to 95W TDP Chipset: Intel C236 Memory: 4x 288pin DDR4-2133/ 1866/ 1600 DIMM Slots, ECC, Unbuffered, Max Capacity of 64GB Slots: 2x PCI-Express 3.0 x16 Slots (run at 16/NA or 8/8), 3x PCI-Express 3.0 x1 Slots, 2x PCI Slots (5V, 32bit) SATA: 8x SATA3 Ports, Support RAID 0, 1, 5, 10 Audio: Realtek ALC888S High Definition Audio CODEC LAN: Intel I210-AT Intel PHY I219LM Gigabit Ethernet Controllers Ports: 2x USB 3.1 Ports, 6x USB 3.0 Ports (2 rear, 4 via headers), 8x USB 2.0 Ports (2 rear, 6 via headers), 1x DisplayPort, 1x DVI-D Port, 1x HDMI Port, 2x RJ45 LAN Ports Form Factor: ATX, 12.0 x 9.6 inch / 30.5 x 22.4 cm
