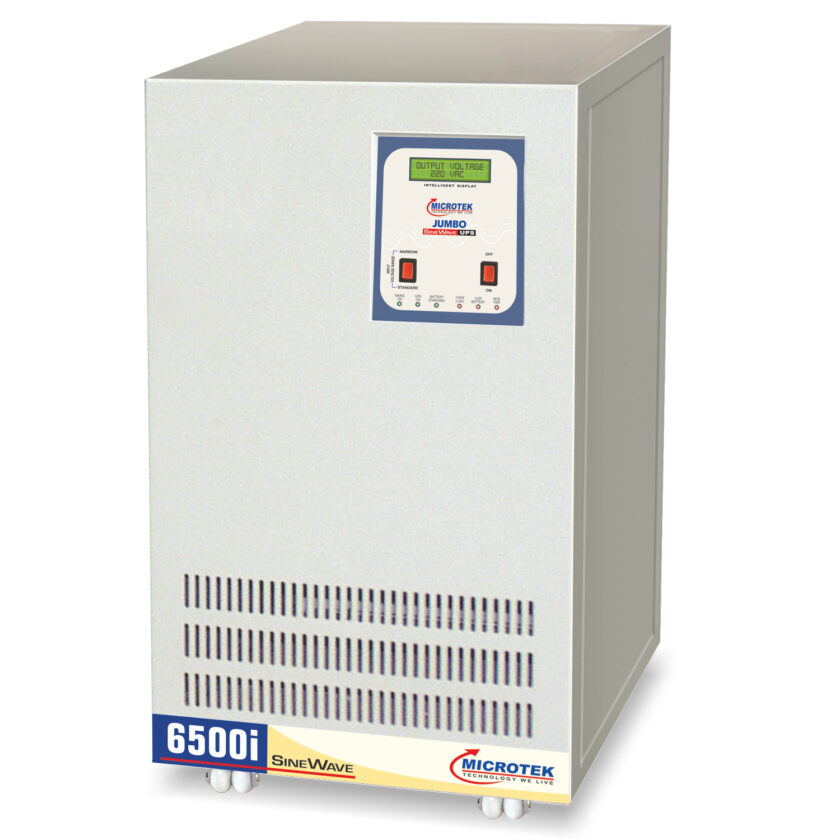

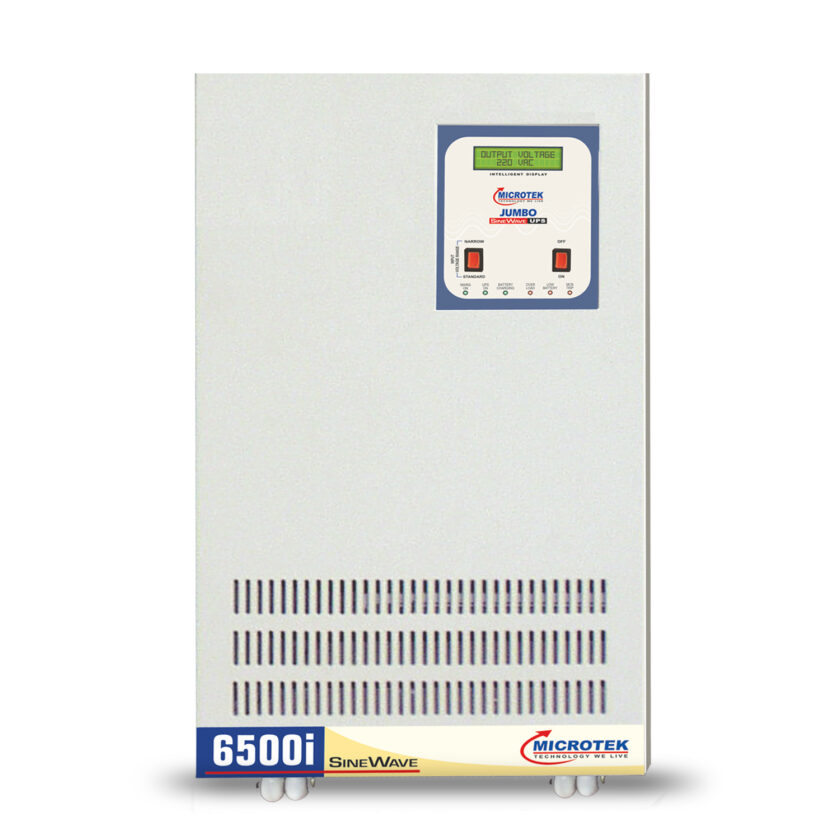

Microtek Hi-Grade Jumbo UPS JM SW 6500i/96V

Microtek UPS JM SW 6500i is Hi-Grade IGBT Based Jumbo UPS Model with Intelli Pure Sinewave Technology which ensures Noiseless, Safe and Efficient Performance. It is Micro Processor based PWM technology using Hi-Grade IGBT’s with Peak Current Handling Capacity and LCD Display. It has In-built Time Delay Relay and Advanced Battery Management for Longer Battery Life and Quick Charging. KEY FEATURE Advanced Battery Management (ABM) for Longer Battery Life and Quick Charging Micro Processor based PWM Technology using Hi-Grade IGBT’s LED & LCD Display Indications. Best Suited for most High Capacity Sophisticated Applications. Generator Compatible. In-built Time Delay Relay (TDR). DISPLAY INDICATION MAINS ON UPS ON BATTERY CHARGING OVERLOAD LOW BATTERY MCB TRIP  Technical Specifications INPUT   INPUT VOLTAGE (Standard range)  100V ~ 280V   INPUT VOLTAGE (Narrow Range)  180V ~ 265V   OUTPUT   OUTPUT VOLTAGE (Main Mode)  Same as INPUT   OUTPUT VOLTAGE (UPS Mode)  220V   10%   OUTPUT WAVE FROM (Main Mode)  Same as INPUT   OUTPUT WAVE FROM (UPS Mode)  Pure Sinewave   CHANGE-OVER   SWITCHOVER (Mains>UPS / UPS>Mains)  AUTOMATIC   UPS TRANSFER TIME  <15 msec   TECHNOLOGY   UPS OVERLOAD / UPS SHORT CIRCUIT  105%~125%(4 Times Auto Reset) / 300%   EFFICIENCY (BATTERY MODE)  >80%   TOTAL HARMONIC DISTORTION (Resistive Load)  Less than 3%   AUTO RESET FEATURE  YES   INPUT DC RANGE  84 ~ 114 V ± 1 Volt   MAXIMUM CHARGING CURRENT  16 Amps(Settable ± 3 Amps)   SEPARATE OUTPUT WITH TDR  1 minute TDR   OPERATING TEMPRATURE  0 to 45 Degree Celsius
