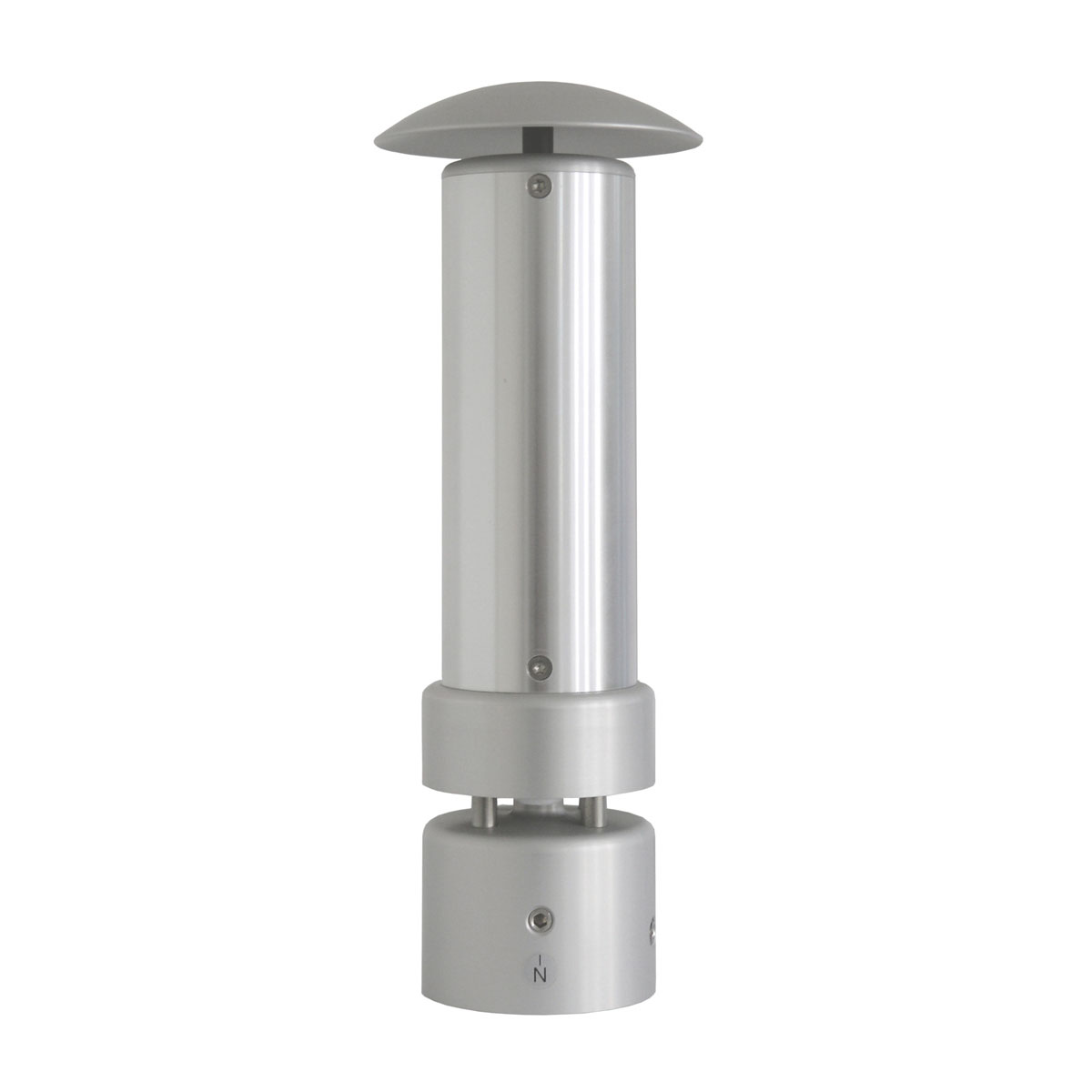

Static Wind Sensor | com[b]

Description Static Wind Sensor | com[b] Id-No. 00.16441.004 112 00.16441.000313 Meas. range wind direction 0…360° Meas. range wind speed 0.2…50 m/s Accuracy wind direction at >1 m/s is 3° RMS Accuracy wind speedResolution wind direction 0.25 m/s ±5 % RMS at 0…15 m/s 1° Resolution wind speed 0.1 m/s Starting value wind speed: 0.2 m/s Output 00.16441.004 112: 2 x 4…20 mA (for wind speed and wind direction) 00.16441.000313: Modbus RTU Protocols 4-20mA NMEA 0183 WIMWV Modbus RTU Range of application temperature -40… 70 °C wind speeds 0…100 m/s 0…100 % r. h. Strongest wind impact velocity 100 m/s Supply voltage 18…32 VDC max. 2.5 A Dimensions H 298 mm \nØ 108 mm mast adapter Ø 50 mm for mounting on standard pipe Housing aluminium anodised IP 66 Weight 1.5 kg Options (order separately) connectable to: Lambrecht data logger met[LOG] Ser[LOG] Accessories (order separately) 10 m connection cable (Id-No. 32.15184.060000) Modbus RTU 32.14567.060010 sensor cable, 15 m, 4 pole, M12 plug 32.14567.060000 sensor cable, 12 m, 4 pole, M12 plug Visualisation and evaluation software Static Wind Sensor | com[b]
