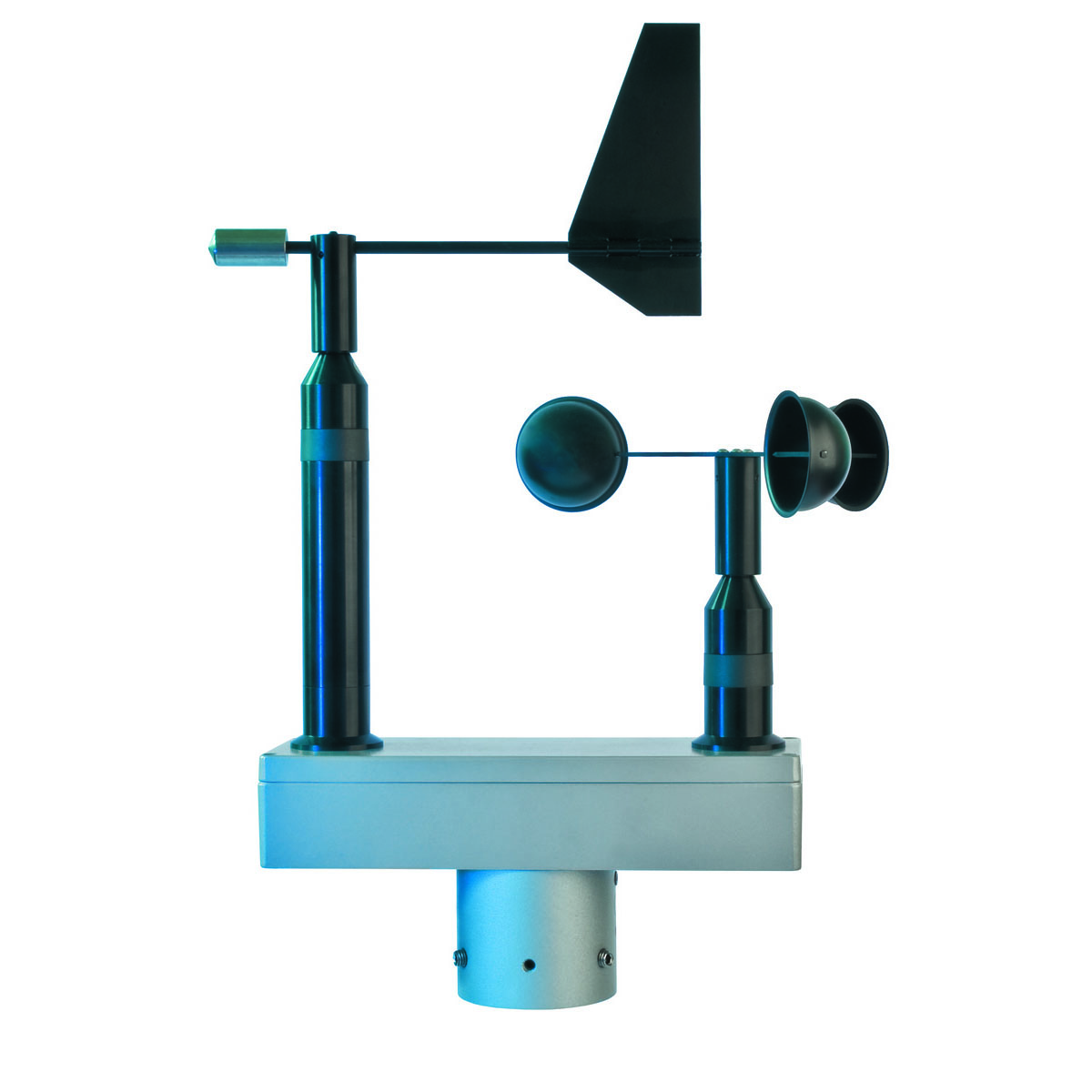

Combined Wind Sensor | 14516 WENTO-MET

Description Combined Wind Sensor | 14516 WENTO-MET Id-No. 00.14516.010001 Meas. range wind direction 0…360° Meas. range wind speed 0.3…75 m/s Accuracy wind direction ± 1° Accuracy wind speed ± 2 % FS at 0.3…50 m/s Resolution wind direction < 1° Resolution wind speed < 0.1 m/s Protocols NMEA 0183 | WIMWV Interface serial RS 422/ Talker baud rate 4800 1 Hz (at measuring cycle 10 Hz) ? 8 N 1 Range of application temperature -30… 70 °C heated wind speed 0…80 m/s 0…100 % r. h. Supply voltage sensor 11…28 VDC/ 50 mA at 24 VDC, max. 120 mA heating electrically controlled 24 VDC/2×9 W Dimensions H 440 mm B max. 475 mm mast mounting: Ø 51 mm pipe Housing seawater resistant aluminium specially coated and protective paint (RAL 9006)IP 65 in an upright position Weight 2.3 kg  Options (order separately) Id-No. 36.09340.000 000 · Visualisation and evaluation software MeteoWare-CS3 Id-No. 00.95800.010 000 · Data logger met[LOG] Id-No. 00.14742.401 002 · Display unit METEO-LCD/IND Accessories (order separately) Id-No. 32.16420.066100 · Sensor cable, 10 m  12-pol. bayonet plug   assembled Combined Wind Sensor | 14516 WENTO-MET
