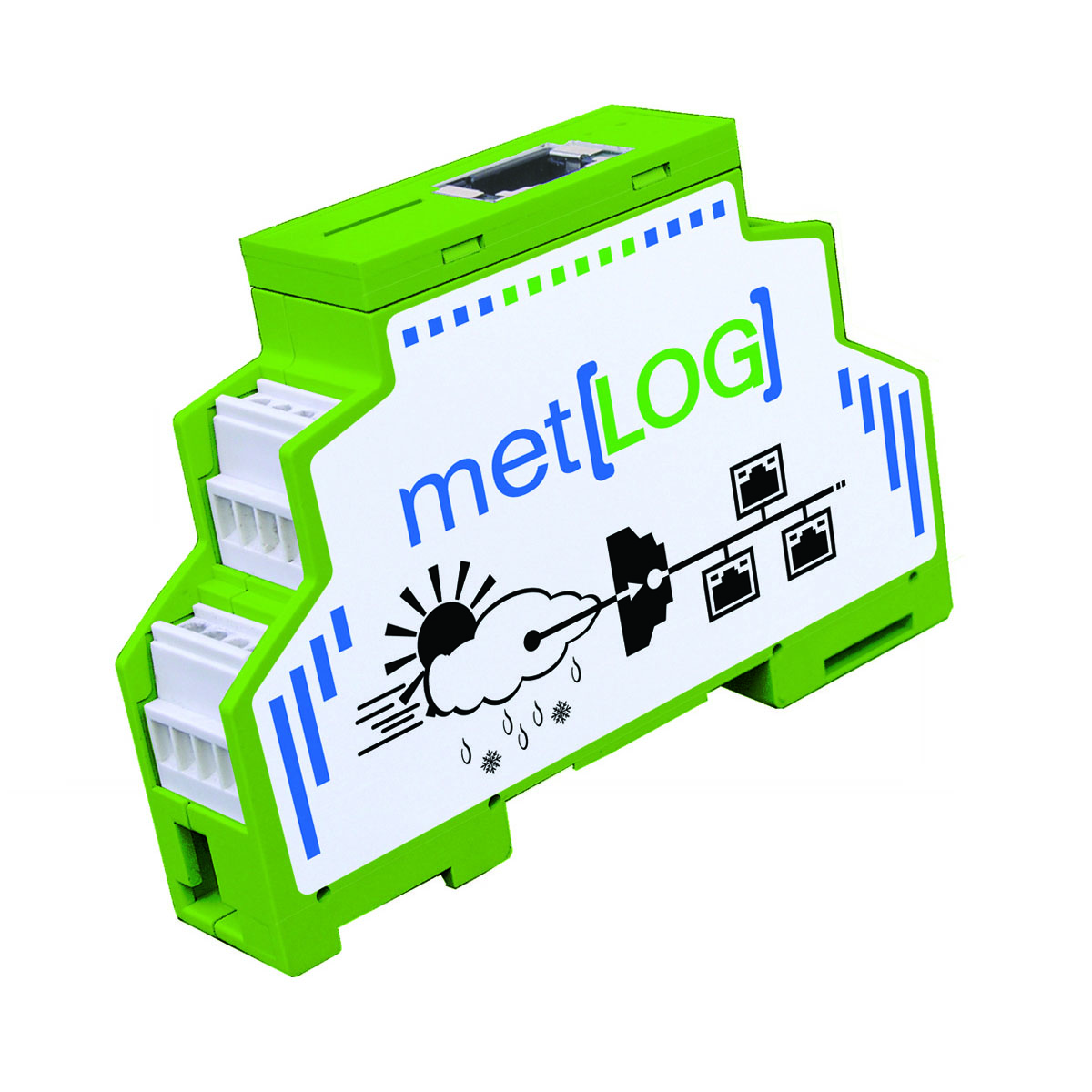

Weather Data Logger | met[LOG]
Description Weather Data Logger | met[LOG] Id-No. 00.95800.000 000 Measuring range Voltage input: 0…10 V Accuracy Analogue: 12 bit Signal input 4 analogue/ digital input range: 0…10 V (configurable) Ri ≥ 10 KΩ Output 4 digital output digital output max. voltage: V0-0.1 V up to V0 max. 0.7 A Protocols NMEA · WIMWV · WIMWD · WIMTA · WIMMB · WIMHU · WIXDR rain[e]-talker SDI-12 on RS 485 (rain[e]) Interface 3 x RS 485 A , B-; half duplex Operating conditions -40… 85 °C Supply voltage 11?32 VDC Current consumption 500 mW typically (no digital output active) Storage capacity Accessory: 8 Gb SD card, Id.-No. 32.95800.010000 Storage interval 1 min · 2 min · 5 min · 10 min Ethernet 10/100 BaseT connector RJ45 shielded Data evaluation integrated web page for visualisation configuration web page Dimensions 17.8 x 89 x 60 mm Housing 1 sec · configurable Weight 62 g Standards EMC: IEC 61000-4-2 up to 8 kV Included in delivery Accessories (order separately) automatic configuration of connected serial LAMBRECHT sensors: rain[e], EOLOS, WENTO, ARCO and THP sensor as well as all Modbus sensors of LAMBRECHT 00.14966.715000: power[cube] 00.14966.300000: 60 W power supply Weather Data Logger | met[LOG]
