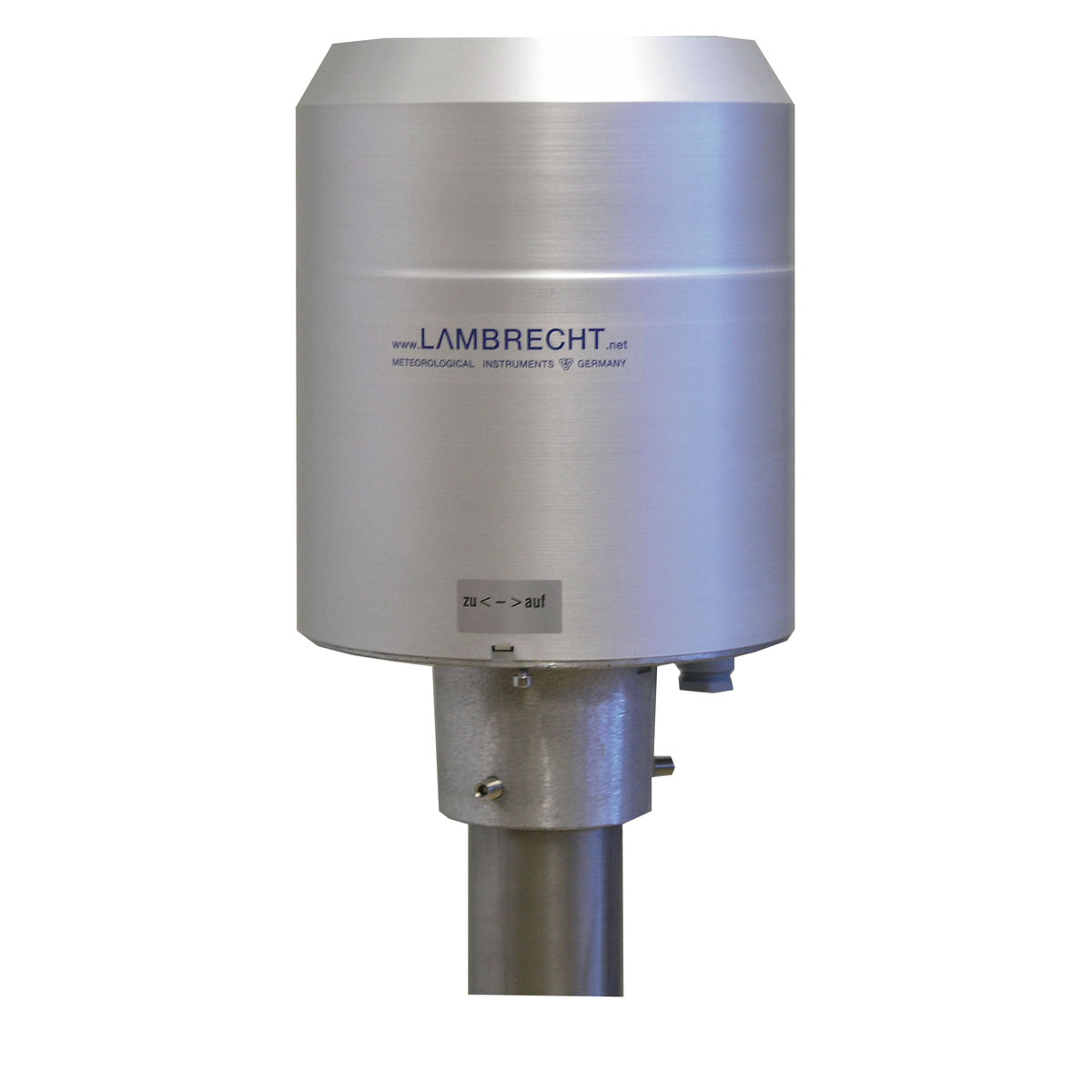

Precipitation Sensor | 15189 Joss-Tognini

Description Precipitation Sensor | 15189 Joss-Tognini   Id-No. 00.15189.002000 Sensor with 2 cubic cm bucket, unheated 00.15189.004000 Sensor with 4 cubic cm bucket, unheated 00.15189.402000 Sensor with 2 cubic cm bucket, heated 00.15189.404000 Sensor with 4 cubic cm bucket, heated Serial Interface: 00.15189.002060 Sensor with 2 cm3 bucket, unheated 00.15189.004060 Sensor with 4 cm3 bucket, unheated 00.15189.402060 Sensor with 2 cm3 bucket, heated 00.15189.404060 Sensor with 4 cm3 bucket, heated Analogue Output: 00.15189.002 050 Sensor with 2 cm3 bucket, unheated 00.15189.004 050 Sensor with 4 cm3 bucket, unheated 00.15189.402 050 Sensor with 2 cm3 bucket, heated 00.15189.404 050 Sensor with 4 cm3 bucket, heated Measuring range 2 cm3: 0…8 mm/min 4 cm3: 0…16 mm/min Accuracy ± 2 % with intensity correction  Resolution 2 cubic cm: (~2 g) volume of tipping bucket – 0.1 mm 4 cubic cm: (~4 g) volume of tipping bucket – 0.2 mm Analogue output: 0…20 mA = basic setting • 4…20 mA • 0…5/10 V – selectable current consume. ≤ 40 mA • supply voltage 18…30 VDC • max. load 600 Ω Pulse output: reed contact | polarity protected | bounce-free signal =>Switching capacity max. 30 VDC / 0.5 A Serial output Interface: RS485 • SDI-12 protocol (at RS485) • LBP protocol (Lambrecht Bus Protocol)  Range of application unheated: 0… 70 °C (frost resistant down to -20 °C) heated: -20… 70 °C – no icing – no snowdrift Supply voltage 4…30 VDC Current consumption max. 100 μA  | typical 50 μA Measuring elements weighing tipping bucket system precision stainless steel bucket acc. to Joss-Tognini Design mounting pipe Ø 60 mm  Heating data electrically controlled dual-circuit heating controlled temperature of 4 ± 2 °C within a range of -20… 4°C heating power 150 W supply voltage 24 VDC Dimensions H 292 mm | Ø 190 mm Housing aluminium | anodised Weight approx. 3 kg Standards WMO-No. 8 | VDI 3786 page 7 | EN 50081/82 | VDE 0100  Accessories (order separately)  00.15091.600XXX Windshield according to Tretyakov for measuring height 1 m, 1.5 m and 2 m 32.15180.021010 bird defence ring 00.14966.200000 Power supply unit for heated sensors Precipitation Sensor | 15189 Joss-Tognini
