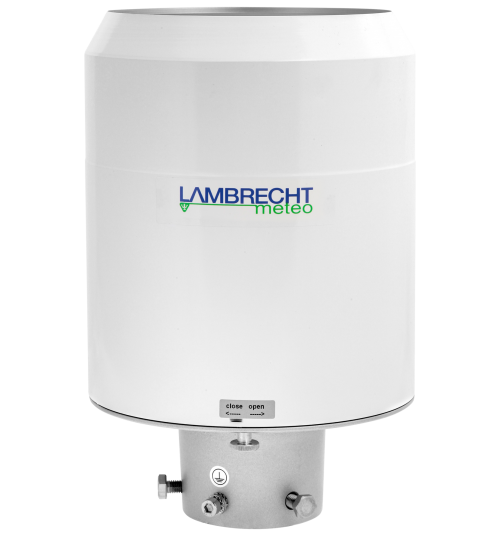

Weighing precipitation sensor | rain[e]

Description Weighing precipitation sensor | rain[e] Id-No. 00.15184.000000 rain[e], unheated 00.15184.400000 rain[e], heated 00.15184.000100 rain[e] Modbus 00.15184.400100 rain[e] Modbus heated Measuring range without limitation (0.005…∞ mm) Accuracy ± 0.1 mm or ±1% at < 6 mm/min and ± 2% at 6 mm/min Amount of accuracy ± 0,1 mm or ±1 % at < 6 mm/min and ± 2% at ? 6 mm/min Amount of Resolution Intensity range 0.001 mm Intensity range 0…20 mm/min resp. 0…1200 mm/h Output SDI-12 RS-485 (SDI-12 protocol, ASCII protocol, TALKER protocol) 2 Pulse-Outputs for linearised, bounce-free output signal Status-Output (configurable, e.g. rain yes/no or heating on/off) Analogue output 0/4…20 mA (0. 2.5/5 V) Modbus (with Modbus version) Collection surface 200 cm2 Environmental conditions 0… 70 °C (unheated) -40…70 °C (heated, no icing, no snow blowing) Supply voltage unheated: 9.8…32 VDCheated: 24 VDC / 2 heating circuits: 80 W (funnel) and 60 W (outlet / tipping bucket) Power consumption max. 45 mA at 24 V power supply and analogue output typ. 7.5 mA at 24 V power supply and deactivated analogue output typ. 12.5 mA at 12 V Target temperature (heating) 2 °C funnel surface temperature Measuring principle weighing with automatic self-emptying Design mounting mast Ø 60 mm Dimensions 292 mm x 190 mm (H x D) Protection class IP67 Weight approx. 2.5 kg Standards WMO-No. 8 | VDI 3786 Bl. 7 | EN 61000-2, -4 | EN 61000-4-2, -3, -4, -5, -6, -11 | NAMUR NE-21 Accessories (order separately) 00.15091.600XXX Windshield according to Tretyakov for measuring height 1 m, 1.5 m and 2 m 32.15180.021010 bird defence ring 32.15184.060000 sensor cable, 10 m, 8-polig, M12-Stecker 32.15184.061000 Power supply cable for sensor heating, 1 m Weighing precipitation sensor | rain[e]
