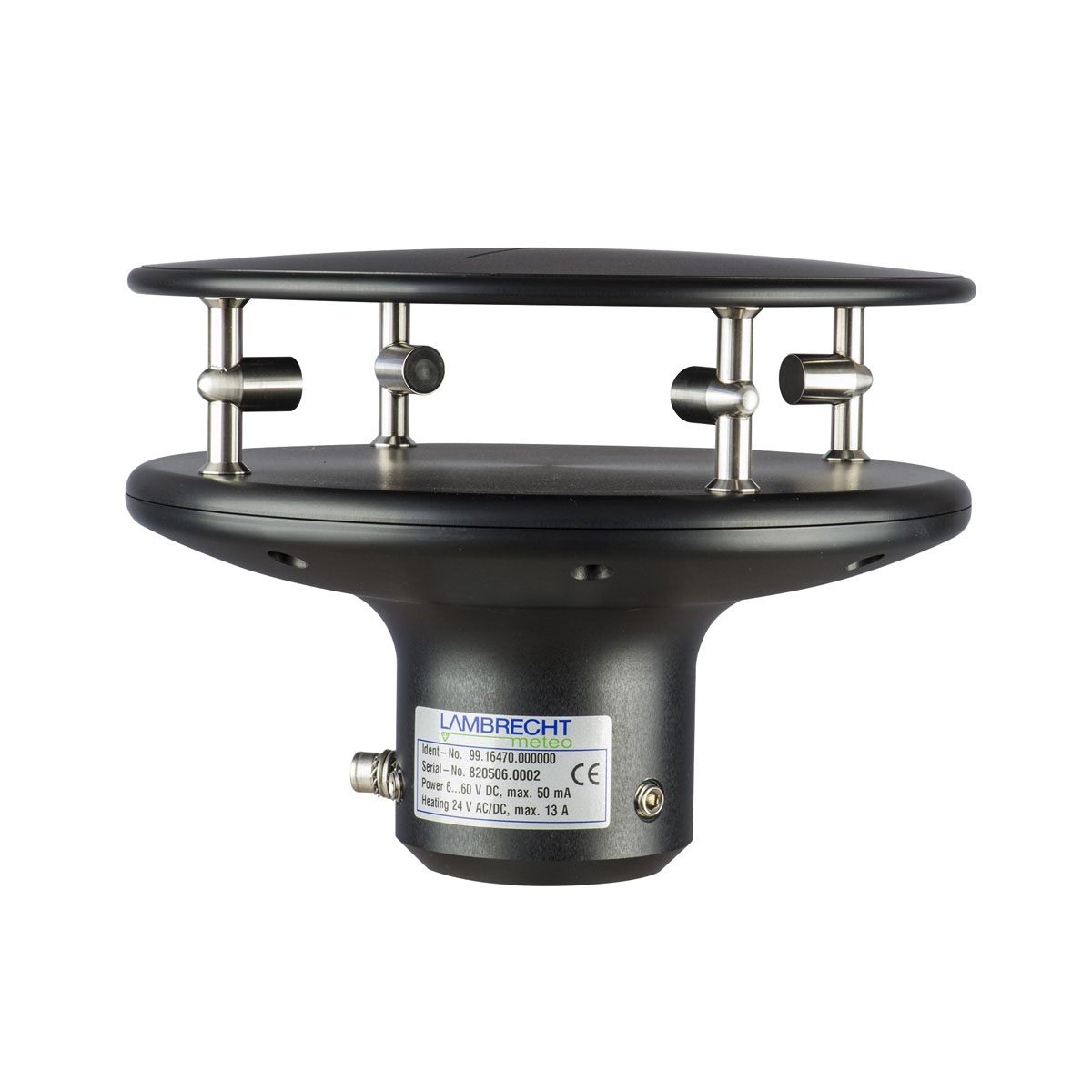

Ultrasonic Wind Velocity Sensor | u[sonic]
Description Ultrasonic Wind Velocity Sensor | u[sonic] Id-No. 00.16470.100000 u[sonic] 00.16470.100130 u[sonic] Modbus Meas. range wind direction 0…359.9° Meas. range wind speed 0…65 m/s Accuracy wind direction < 2° (> 1 m/s) RMSE Accuracy wind speed ± 0,2 m/s RMSE (v < 10 m/s) ; ± 2 % RMSE (10 m/s < v < 65 m/s) Resolution wind direction 0.1° Resolution wind speed 0.1 m/s Trigger threshold 0.1 m/s (adjustable for wind direction) Output RS 485 · Analog: 0…20 mA · 4…20 mA · 0…5 V · 0…10 V Protocols NMEA 0183 | WIMWV | WIMTA | SDI-12 | Modbus (optional) | other protocols on request Measuring rate 0.1…10 Hz ? (internal measurement 50 Hz) Operating conditions -40… 70 °C (with heating -50… 70 °C) 0…100 % rH Strongest wind impact velocity 100 m/s Supply voltage 6…60 VDC 24 V AC/DC Current consumption sensor: type. 45 mA at 24 VDC and deactivated analogue output heater factory configurable: 60 W · 120 W · 240 W (standard) Measuring principle Ultrasound Heating data configurable (factory-setting) 60 W | 120 W | 240 W (standard) Dimensions Ø 199 mm | height 149 mm Housing seawater resistant aluminium Protection class IP 66 · IP 67 Weight approx. 2 kg Accessories (order separately) 32.16470.060000 sensor cable, 15 m ? 8-pole M16 Ultrasonic Wind Velocity Sensor | u[sonic]
