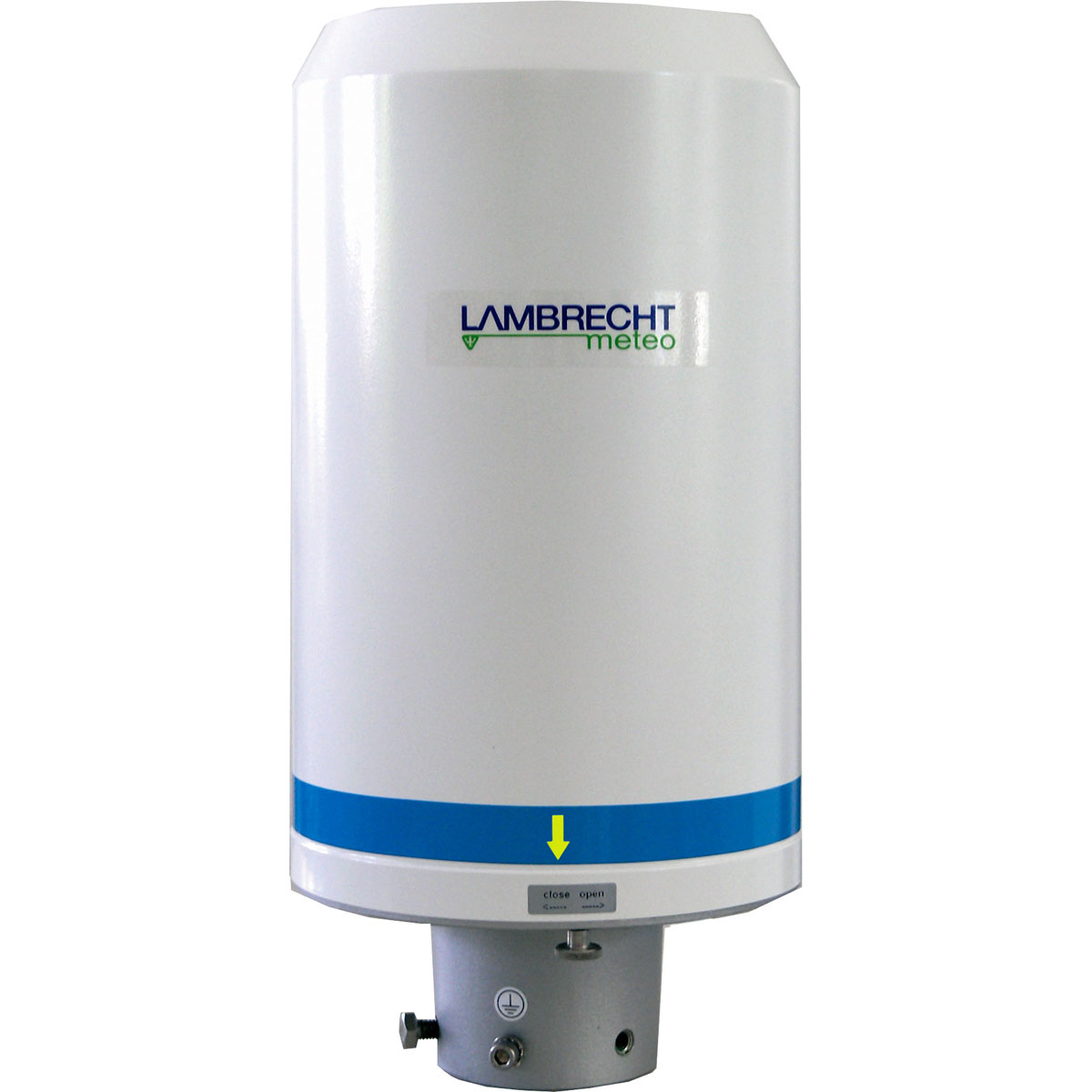

Weighing Precipitation Sensor | rain[e]H3

Description Weighing Precipitation Sensor | rain[e]H3 Id-No. 00.15184.540020 Measuring range without limitation (0.005… ∞ mm) Accuracy ± 0.1 mm or ±1 % at < 6 mm/min and ± 2 % at ≥ 6 mm/min Amount of accuracy 1 % at 1 mm/min Amount of Resolution 0.001 mm Intensity range 0…20 mm/min resp. 0…1200 mm/h Intensity of resolution 0.001 mm/min resp. 0.001 mm/h Output: SDI-12 RS-485 (SDI-12 protocol, ASCII protocol, TALKER protocol) 2 Pulse-Outputs for linearised, bounce-free output signal Status-Output (configurable, e.g. rain yes/no or heating on/off) Analogue output 0/4…20 mA (0. 2.5/5 V) Collection surface 200 cm2 Environmental conditions -40… 70 °C (no icing or snowdrift) Supply voltage 9.8…32 V DC Current consumption typ. 7.5 mA at 24 V power supply, without Ethernet with RS485 ·typ. 12.5 mA at 12 V max. 150 mA at 12 V power supply with Ethernet Target temperature (heating) 2 °C funnel-surface temperature ± 1 °C Measuring principle weighing with automatic self-emptying Design mounting mast Ø 60 mm Heating data electronically controlled ring- (70 W), funnel- (70 W) and drain-line (60 W) heating Dimensions 377 mm x 190 mm (H x diam.) Protection class Weighing cell: IP67; housing: IP64 Weight approx. 4 kg Standards WMO-No. 8 | VDI 3786 Bl. 7 | EN 61000-2, -4 | EN 61000-4-2, -3, -4, -5, -6, -11 | NAMUR NE-21 Accessories (order separately) 00.15091.600XXX Windshield according to Tretyakov for measuring height 1 m, 1.5 m and 2 m 32.15180.021010 bird defence ring 32.15184.060000 sensor cable, 10 m, 8-polig, M12-Stecker 32.15184.061000 Power supply cable for sensor heating, 1 m Weighing Precipitation Sensor | rain[e]H3
