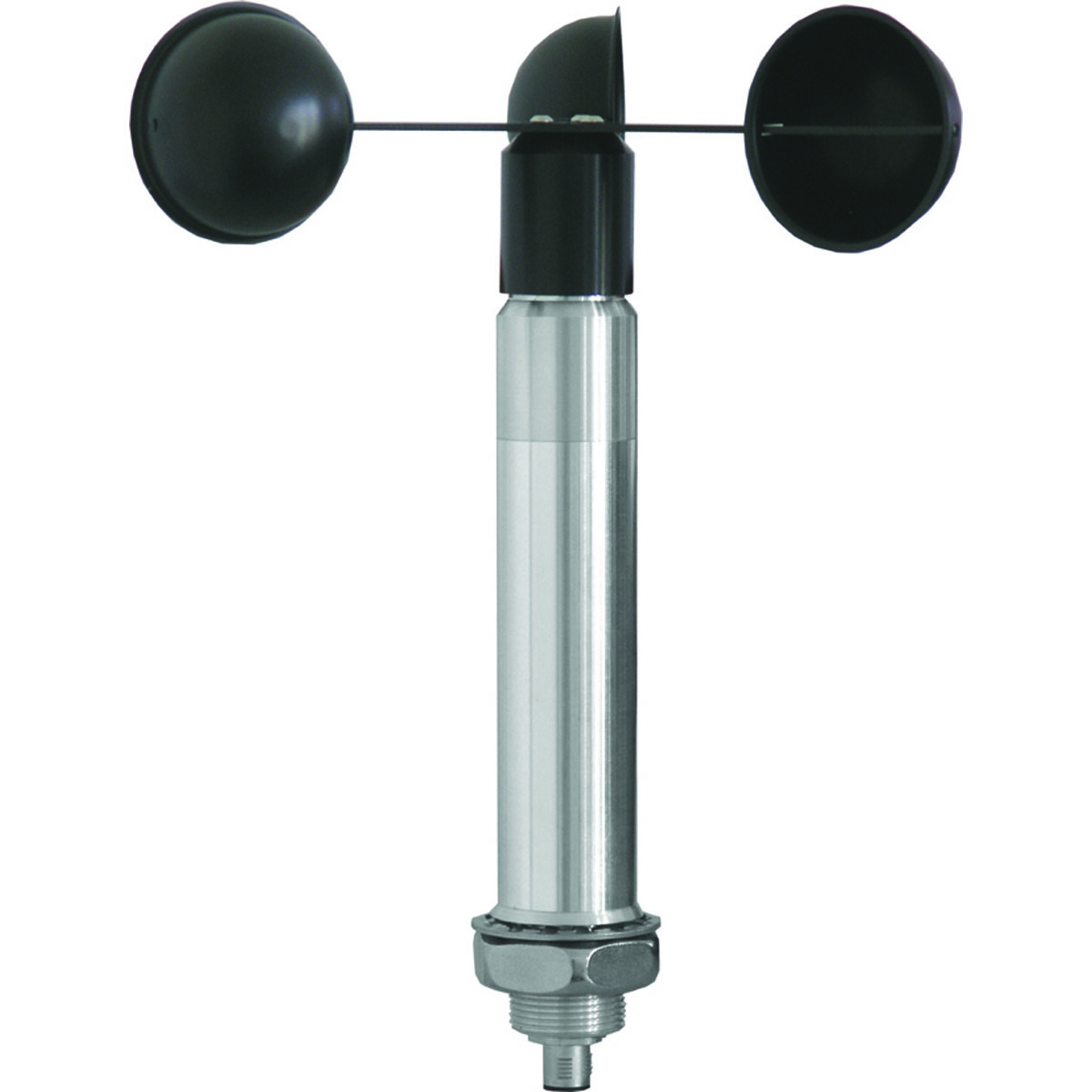

PRO-WEA Wind speed sensor 14524 | 4-20mA Output

Description Professional Line PRO-WEA 14524 Id-No. 00.14524.100040  PRO-WEA Wind speed sensor 00.14524.200040 PRO-WEA RF ind speed sensor Measuring range 0.5…60 m/s Accuracy ± 0.3 m/s ≤  10 m/s ± 0.5 m/s…60 m/s Resolution < 0.1 m/s Starting value < 0.5 m/s PRO-WEA < 0.6 m/s PRO-WEA RF Output 4 Hz update rate 4…20 mA = 0…60 m/s at the current output (4…20 mA) a load of max. 600 Ohm must not be exceeded Range of application temperatures -40… 70 °C heated wind speed max. gusts 100 m/s humidity 0…100 % r.h. Supply voltage 24 VDC (20…28 VDC)  | 18 W heating max. 800 mA the heating within the sensor head prevents blocking of the moving parts under most climatological conditions Measuring elements aluminium special surface 3 armed cup rotor reinforced measuring elements on PRO-WEA RF Measuring principle Hall Sensor Array, non-contact Housing seawater resistant aluminium IP 65 in upright position M12 cable-plug connection stainless steel nut and lock washer Weight 0.35 kg Included in delivery 1 sensor 15 m cable with 4 pin M12 plug connector
