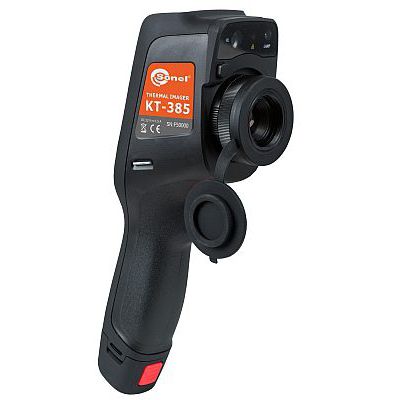

Thermal Imaging Camera | KT-385

Description Thermal Imaging Camera | KT-385 Technical Specification KT-385 Detector resolution 382×288 Spectral range 8~14 µm Pixel size 25 µm Thermal sensitivity 45 mK Focusing Fixed focal IFOV (standard lens) 1.29 mrad Minimum focus distance(standard lens) 0.5 m Lens (field of view/focal length) 28.4°*21.5°/19 mm Display 4″, high-quality LCD touchscreen Imaging mode IR /Visual/InfraFusion MIF/PiP Zoom 1.1…4 Temperature range Range 1: -20°C…150°CRange 2: 150°C…650°C Accuracy ±2°C or 2% of reading (for ambient temperatures between 15°C and 35°C and object temperature above 0°C) Image analysis mode 5 points, 2 lines, 5 Areas. Temp. readings: min., max., mean. Isotherms. Temp. difference Alarm temp. Dew point. Palettes 8 Emissivity coefficient Adjustable from 0.01 to 1.00 or taken from the material list. Measurement correction Settable distance, relative humidity, ambient (reflected) temperature Photo image format JPG Notes to IR photos Audio (60 seconds), text, graphic, photo Report module PDF reports, report printing through Wi-Fi Video file format AVI, IRV (including information on temperature) Built-in functions Visual camera 5 MPix, LED torch, laser pointer, microphone, speaker. Wireless communication Wi-Fi Interfaces MicroSD card port, mini HDMI, micro USB 2.0 Power supply Li-Ion battery (operating time >4 hours), built-in charger, AC 110-230 V (50/60 Hz) / 12 V power supply adapter Operating temperature -10°C…50°C Storage temperature -40°C…70°C Humidity 10% … 95% Shock/vibration resistance 30g 11 ms (IEC 60068-2-27) / 10 Hz~150 Hz~10 Hz 0.15 mm (IEC 60068-2-6) Housing IP54 Weight approx. 0.74 kg (with battery) Dimensions (with standard lens and battery) 274 mm x 97 mm x 78 mm Thermal Imaging Camera | KT-385
