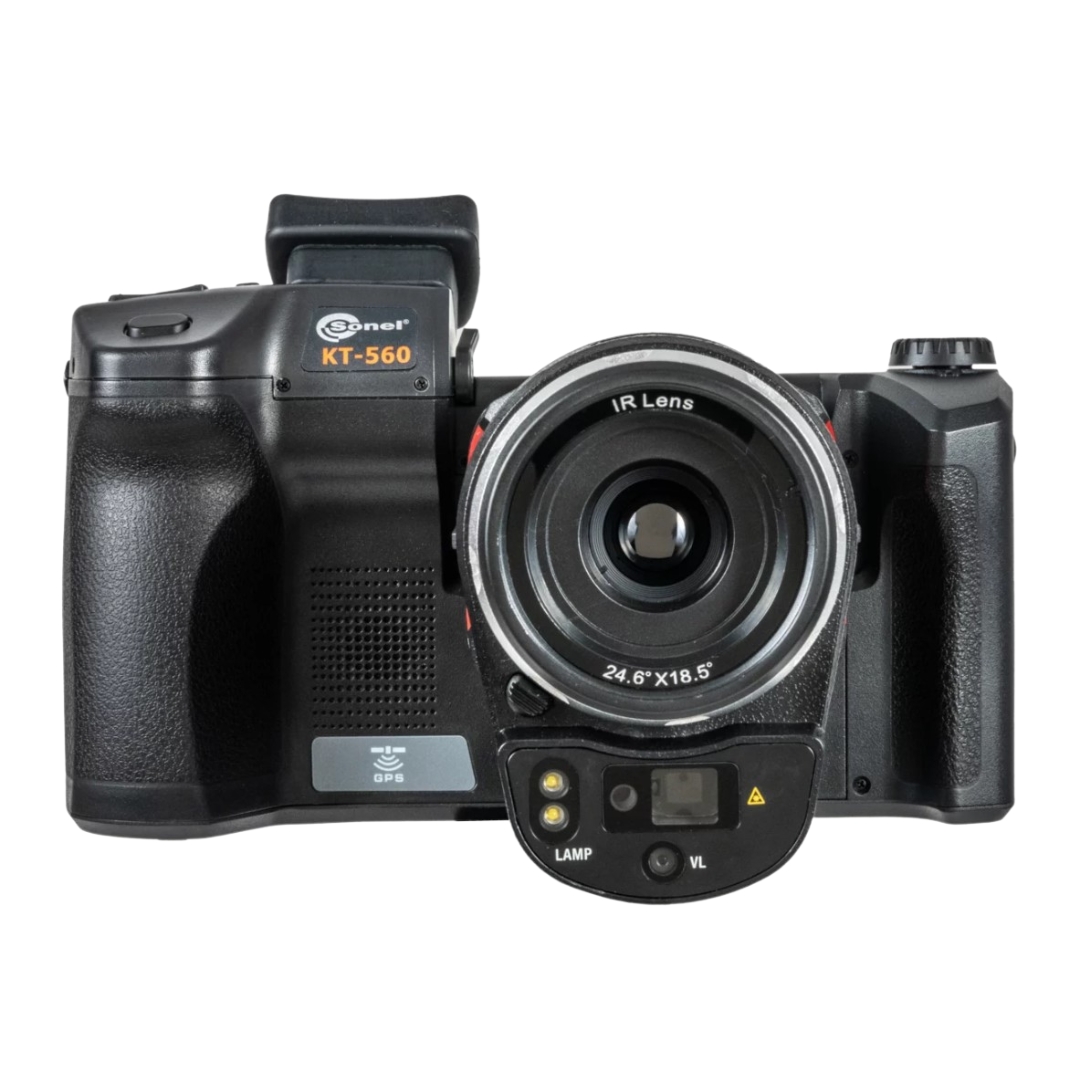

Advanced Thermal Imager | KT-560.1
Description Advanced Thermal Imager | KT-560.1 Parameter Description Detector resolution 384 x 288 / 17 μm Spectral range 7.5~14 μm Thermal sensitivity 45 mK Lens (field of view / focal length / instantaneous field of view / min. focus distance) • standard 24.9° x 18.7° / 15 mm / 1.13 mrad / 0.4 m • wide angle 48.1° x 35.9° / 7.78 mm / 2.19 mrad / 0.15 m • telephoto 11.2° x 8.4° / 33 mm / 0.52 mrad / 2 m • ultra-telephoto 7.3° x 5.5° / 50.7 mm / 0.34 mrad / 4 m • macro 23.3 mm x 17.5 mm / 67 mm / – / 60.7 μm • high temp 24.9° x 18.7° / – / – / – Display 5”, 1280 x 720 high brightness, LCD touchscreen Viewfinder 1280 x 960 LCOS Image modes IR / Visual / Infrafusion MIF / PiP Digital zoom 1…10 Temperature range Range 1: -40°C…150°C Range 2: 100°C…800°C Optional: 700°C…2000°C Accuracy ±2°C or ±2% of reading Image analysis modes 12 points, 12 lines, 12 areas. Temperature indication: min, max, average. Isotherm. Temperature alarm. Smart stroke. Palettes 8 Super-resolution 4x, 768 x 576 Panoramic images – Emissivity coefficient Selectable from 0.01 to 1.00 Measurement adjustment Auto-adjustable distance, relative humidity, ambient temperature (reflected) File format JPG IR image annotations Additional visual photos, voice, text recognition, text typing Reports module PDF reports Video file format MP4 (without temp. information), IRGD (including temp. information) Built-in features Visual camera 13 MPix, LED flashlight, GPS, laser pointer, laser rangefinder, microphone, speaker, digi-tal compass, light sensor Wireless communication Wi-Fi, Bluetooth Storage Built-in memory (64 GB), SD card, cloud service Interface SD card slot (max. 64 GB), LAN 1 Gb/s, micro HDMI, USB type C (data transfer only), tripod Power supply Li-ion battery (4 h of continuous operation), built-in charger, AC adapter 110-230 V, 50/60 Hz Operating temperature -15°C… 50°C | 5°F…122°F Storage temperature -40°C… 70°C | -40°F… 158°F Humidity 10%…95% Shock/Vibration 30g 11 ms (IEC 60068-2-27) Ingress protection IP54 Advanced Thermal Imager | KT-560.1
