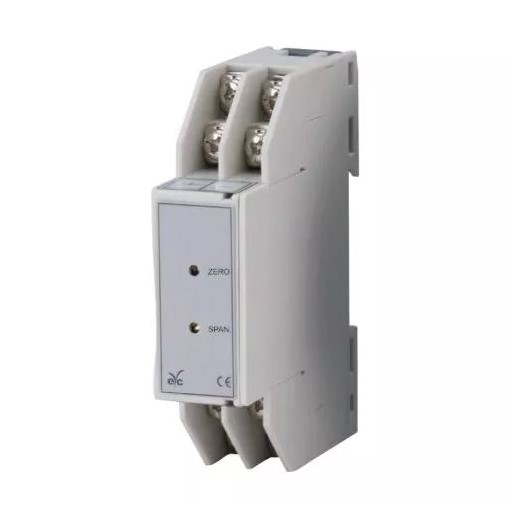

Temperature Transmitter for DIN-rail | TP02

Description Temperature Transmitter for DIN-rail | TP02 Specifications Input Input signal RTD Pt100 (3-wire) Cable resistance ≦50 Ω (3 wires with the same resistance) Pt100 sensor current ＜0.8 mA ZERO adjustment range ±10% SPAN adjustment range ±10% Output Output signal DC 4 … 20 mA (2-wire) Load resistance ≦(Supply voltage – 8 V) / 0.02A Ω Load resistance stability ±0.05% / 100Ω Power stability ±0.025% / V Accuracy Accuracy ±0.1% of F.S. Temperature Temperature drift ＜±0.015% F.S. / °C Calibration temperature 20 … 28°C Response time ＜250 ms Environment Medium Air Operating temperature -20 … 60°C Operating humidity 0 … 95%RH (Non-condensing) Electrical specification Power supply DC 10 … 30 V Operating environment -20 … 60°C 0 … 95%RH (Non-condensing) Protection Pt100 signal disconnection protection & output ＞23 mA Pt100 signal short circuit protection & output ＜3 mA Output polarity protection Yes IP rating Housing:IP30 / Terminal:IP10 Certification Certification CE Material Housing ABS (UL94V-0) Temperature Transmitter for DIN-rail | TP02
