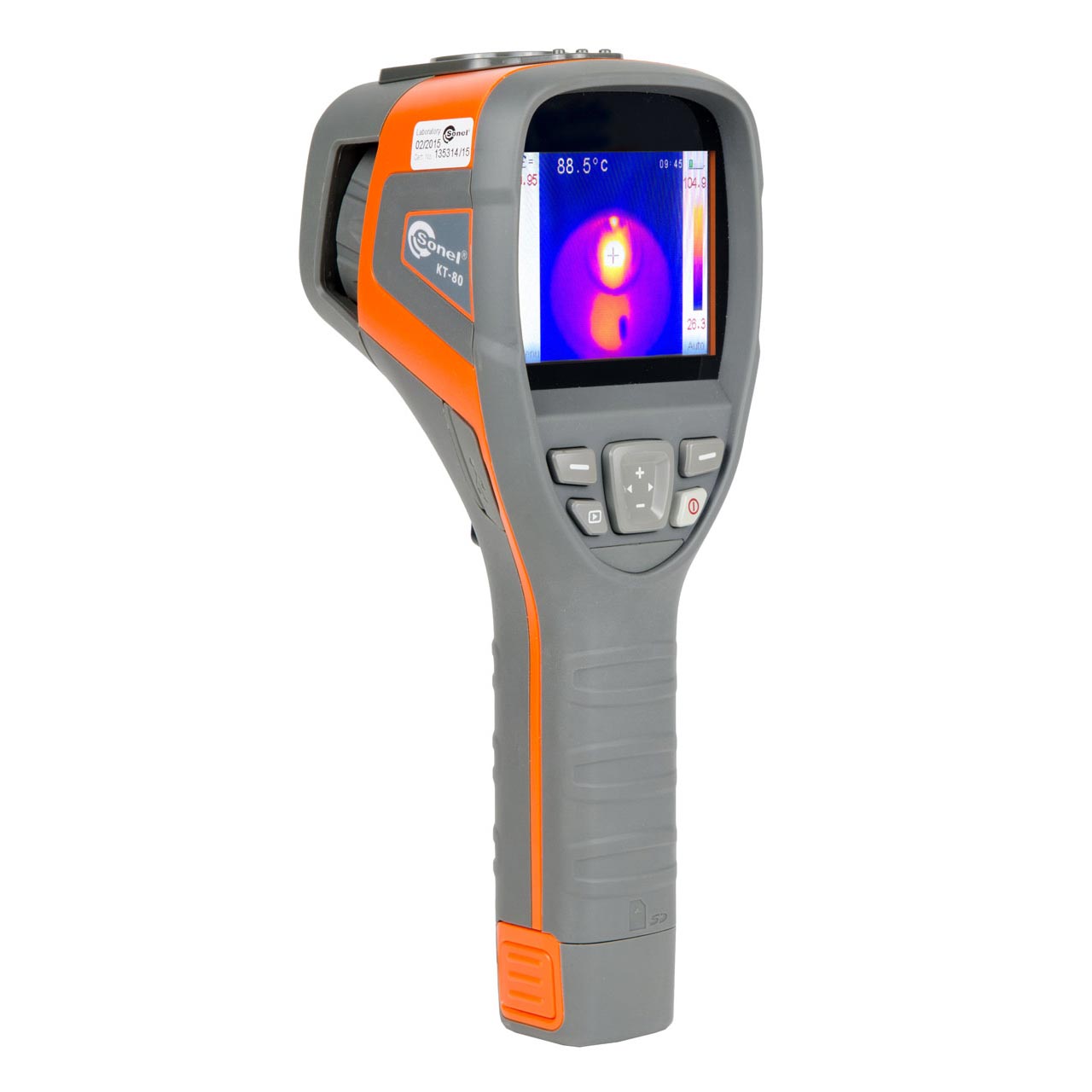

Thermal Imager | KT-80
Description Thermal Imager | KT-80 SPECIFICATIONS KT-80 Lens 8 mm Detector type <80 x 80 Spectral range 8…14 μm Focus Manual Focal length / FOV 8 mm / 18.5°X 18.5° Thermal sensitivity < 0.08°C @30°C Digital zoom – Palette 4 Interface micro USB Display specifications Display Hi-brightness LCD 3.5’’ LCD (resolution 320 x 240 px) Triple brightness adjustable Frame 50 Hz Temperature measurement parameters Accuracy ±2°C or ±2@ Temp. range 0°C… 250°C Measurement parameter calibration Emissivity adjustable (0.01-1.00) Measurement functions Point Center point temperature Max Area auto tracking Min Area auto tracking Format file / storage JPG / removable SD memory card Power system Battery type 3,7 V 4200 mAh Li-Ion Charging system In camera charging or external battery charger (option) Power adapter 110/230 VAC,50/60 Hz Battery operating time up to 4 hours Other technical data Enclosure protection IP43 Dimensions 103 mm x 98 mm x 258 mm Weight 755 g Operating temperature -10°C…50°C Storage temperature -20°C…60°C Humidity 10% to 95 without condensation Shock 25G, IEC 68-2-29 Vibration 2G, IEC 68-2-6 Calibration certificates are issued during the production process. New calibration certificates are available upon request at an additional cost. Thermal Imager | KT-80
