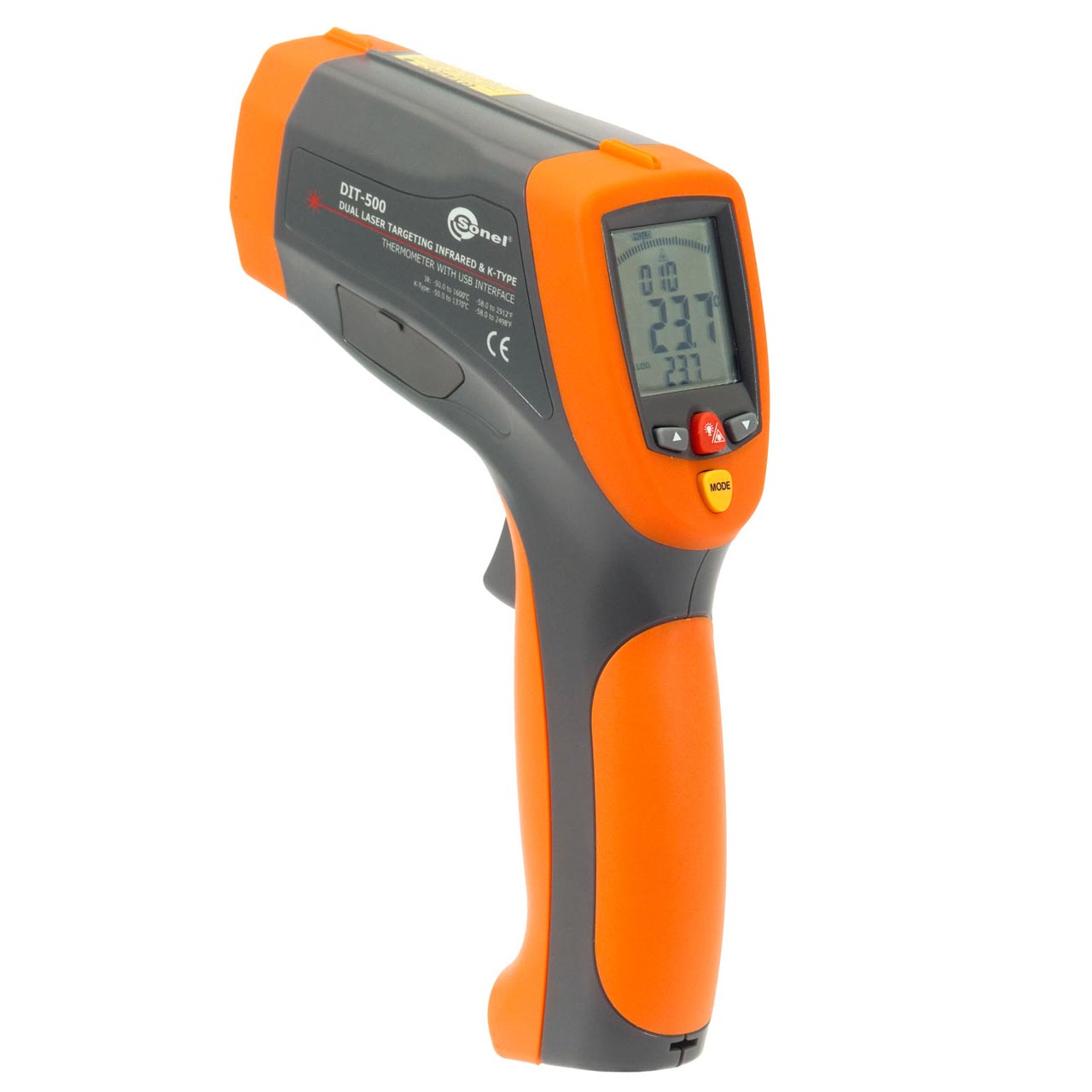

Pyrometer Infrared Thermometer | DIT-500

Description Pyrometer Infrared Thermometer | DIT-500 IR temperature range IR temperature range D:S Resolution Accuracy -50…999,9°C -58…999,9°F 50:1 0,1°C 0,1°F -50…20°C -58…68°F ±2,5°C ±4,5°F 1000…1600°C 1000…2912°F 1°C 1°F 20…400°C 68…752°F ±(1,0% m.v. 1°C) ±(1,0% m.v. 1,8°F) 400…800°C 752…1472°F ±(1,5% m.v. 2°C) ±(1,5% m.v. 3,6°F) 800…1600°C 1472…2912°F ±2,5% m.v. Type K temperature range Type K temperature range Resolution Accuracy -50…999,9°C -58…999,9°F 0,1°C 0,1°F ±(1,5% m.v. 3°C) ±(1,5% m.v. 5°F) 1000…1370°C 1000…2498°F 1°C 1°F ±(1,5% m.v. 2°C) ±(1,5% m.v. 3,6°F) D:S – Distance (D) to Spot Size (S) “m.v.”- measured value Rated operational conditions: operating temperature: 0… 50°C storage temperature: -20… 60°C humidity: 10…90% Other technical data: display LCD: segment with a backlight spectral response: 8~14μm emissivity: digitally adjustable from 0,10 to 1,0 polarity: automatic, (-) sign for negative polarity diode laser: output <1 mW, wave length 630~670 nm, class 2 laser product power supply: 9 V battery, NEDA 1604 A or IEC 6LR61 over range indication: LCD will show “—-“ response time: 150 ms weight: 350 g dimensions: 230 x 155 x 54 mm Calibration certificates are issued during the production process. New calibration certificates are available upon request at an additional cost. Pyrometer Infrared Thermometer | DIT-500
