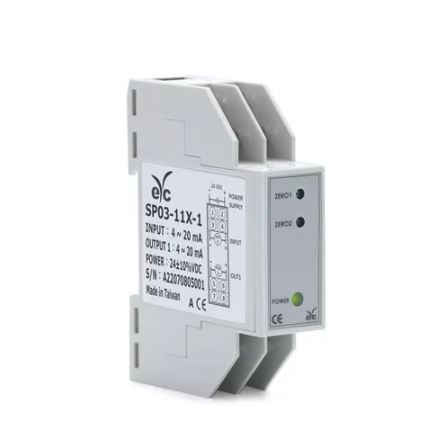

Isolated Converter Splitter | SP03

Description Isolated Converter Splitter | SP03 Specification Input / Output Input 4 … 20 mA / 0 … 10 V Ouput(Isol.GND) 4 … 20 mA / 0 … 10 V Load resistance Current output：≦ 500 Ω Voltage output：≧ 100 KΩ Accuracy Accuracy ±0.1% F.S. Temp. influence 0.025% F.S. / °C Repeatability 0.1% F.S. Environment Operating temperature 0 … 50°C Operating humidity 0 … 95%RH (Non-condensing Storage temperature -20 … 60°C Electrical Power supply DC 24 V±10% Electrical connection Screw terminals Installation Installation DIN-rail Protection IP rating IP54 Electrical protection Reverse polarity Over-voltage Short-circuit Certification Certification CE Material Housing PA-765B Weight 70 g Isolated Converter Splitter | SP03
