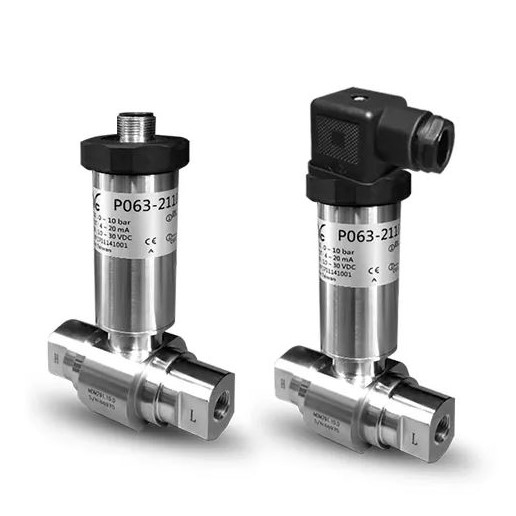

Piezoresistive Differential Pressure Transmitter | P063
Description Piezoresistive Differential Pressure Transmitter | P063 Specification Input Sensor type Piezoresistive Diaphragm Measuring range 0 … 20 bar Overpressure ≦ 10 bar：2 x F.S. >10 bar: 2 x F.S. – Overpressure ≦ 10 bar: 1 x F.S. >10 bar: 0.5 x F.S. Output Output 4 … 20 mA Signal connection 2-wire Load resistance(Current output) ≦(Operating voltage-10 V) / 0.02 A Ω Output calibration(ZERO & SPAN) ±2.0% of F.S. ±10% of zero-point and full-scale Response time(10 … 90%) ≦ 5 ms Accuracy Accuracy ±0.5% of F.S. Temperature influence(at 35°C) Zero-point error ≦ 2 bar：±0.75% of F.S. Max.：±1.25% of F.S. > 2 bar：±0.5% of F.S. Max.：±0.75% of F.S. Measuring range error ≦ 2 bar：±0.75% of F.S. Max.：± 1.25% of F.S. > 2 bar：±0.5% of F.S. Max.：±0.75% of F.S. Environment Measuring medium Liquid / Air(Provide coating) Medium Temp. 0 … 70°C Operating Temp. 0 … 70°C Operating humidity 0 … 100%RH(Non-condensing) Storage temperature -40 … 70°C Electrical Power supply DC 10 … 30 V Current consumption ≦ 27.5 mA Overvoltage protection < DC 33 V Electrical connection DIN 43650 Installation Installation Duct Protection IP rating DIN 43650 : IP65 Electrical protection ■ Over-voltage ■Polarity ■ Short-circuit Shock effect ≦ ± 1 % at 3 g RMS，30Hz … 2000Hz Certification Certification CE Material Housing SUS 316L Wetted part SUS 316L Sensor SUS 316L Connect thread SUS 304 Oil seal Viton Weight 410 g (Without outside thread) Piezoresistive Differential Pressure Transmitter | P063
